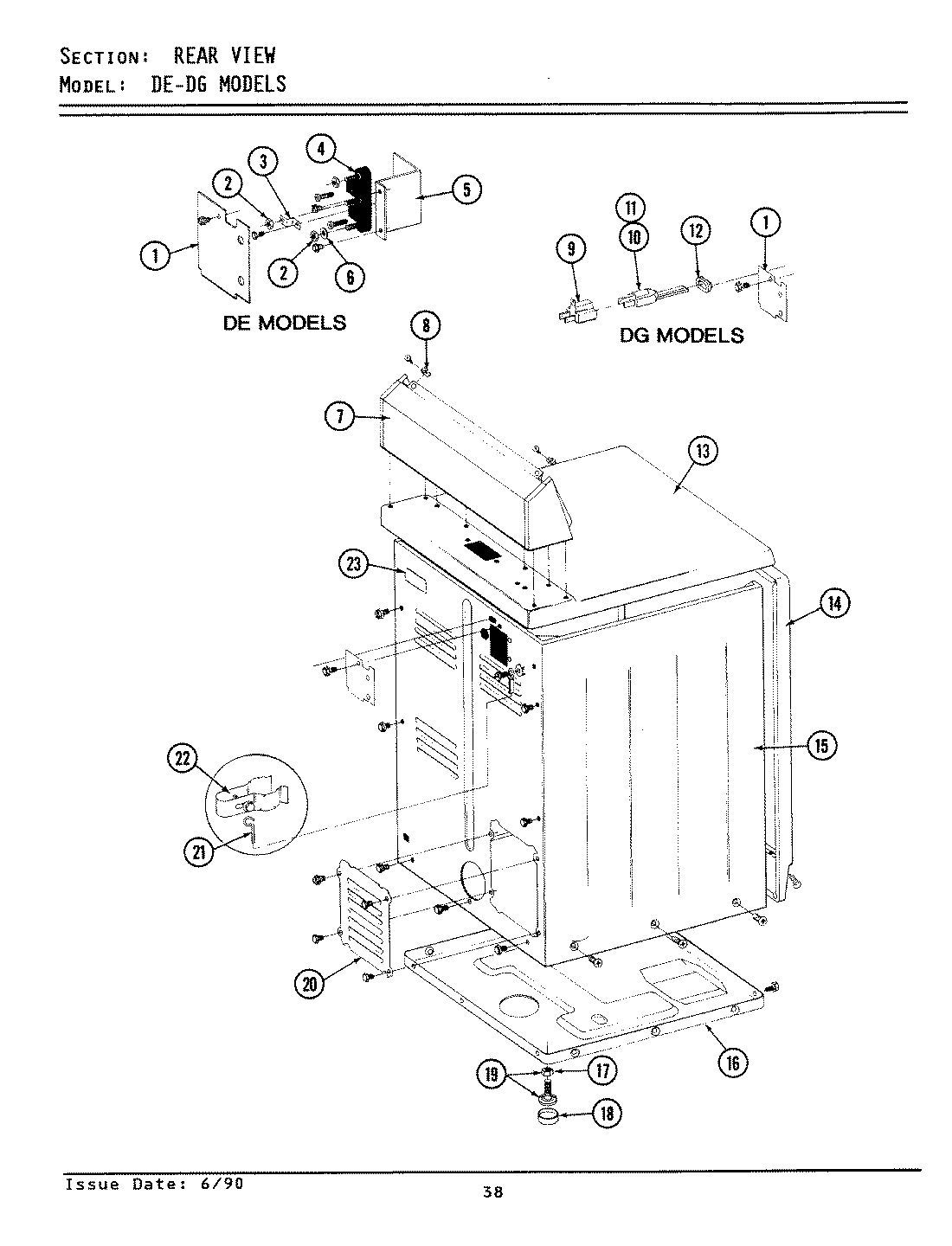

DE5910 09 – REAR VIEW

DE5910 09 – REAR VIEW

Written by

in

DE5910 09 – REAR VIEW

Products

PositionProduct
1MAY Y312905
2WP112432 Whirlpool Nut Assembly
3PART NOT USED
3PART NOT USED
4SCREW, No.10-24 X 3/4 INCH—–O
4PART NOT USED
5PART NOT USED
6WPY311270 Whirlpool Washer TE
7MAY Y305193
8MAY 215075
11MAY 305168
13TOP COVER ASSY. (WHT)
14PANEL, FRONT (WHT)
15MAY 307124
15MAY Y310632
15MAY Y313561
16MAY Y303361
17WP62739 Whirlpool Nut
18WPY314137 Whirlpool Rubber Foot
19W10176519 Whirlpool Leveling Feet
20MAY Y313559
20MAY Y312951
20WP90767 Whirlpool Screw
