DE600EDD5 02 – CONSOLE, CONTROLS, TOP PANEL

DE600EDD5 02 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

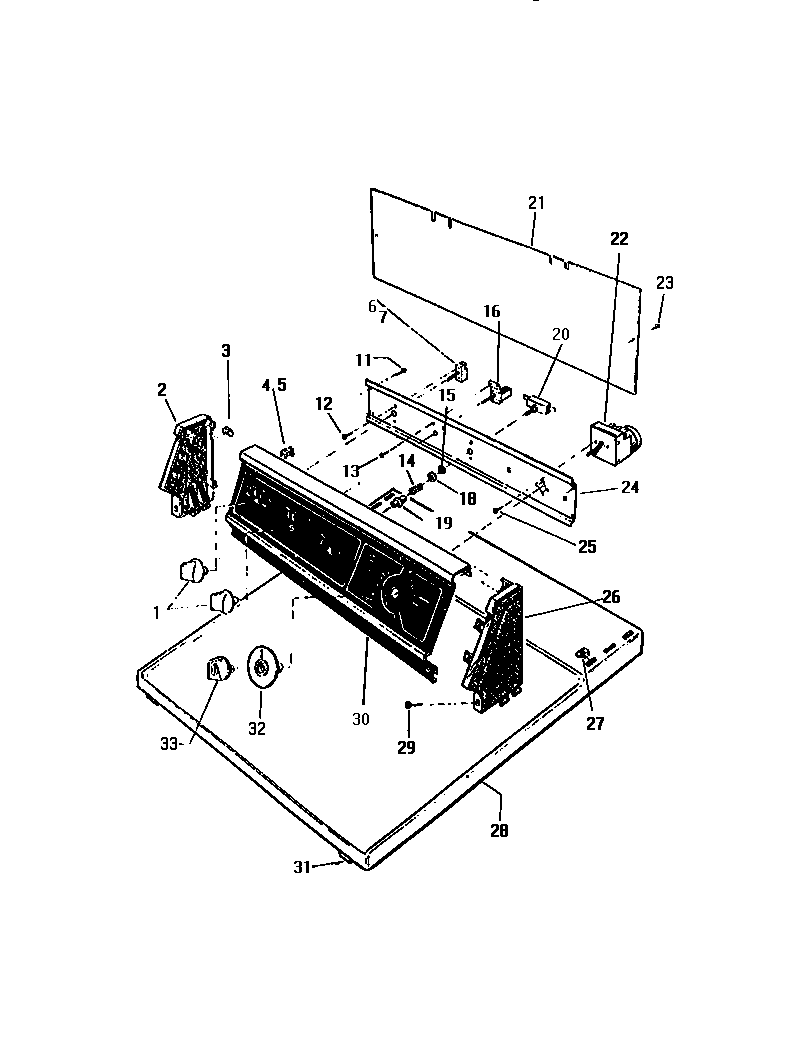

DE600EDD5 02 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
2WCI Q616731
3SPEEDNUT (8)
5WCI Q504803
7SWITCH, SELEC.
12SCREW
13SCREW (4)
14WCI Q66793
15WCI Q409004
16WCI Q152913
18WCI Q501450
19WCI Q621231
20START SWITCH
21WCI Q616741
22WCI Q618533
23SCREW (4)
24WCI Q616711
25SCREW (4)
26WCI Q616732
27WCI Q503065
28WCI Q621246
29WCI Q504533
30WCI Q616911
31SPRING CATCH
32WCI Q617641
33KNOB TIMER
