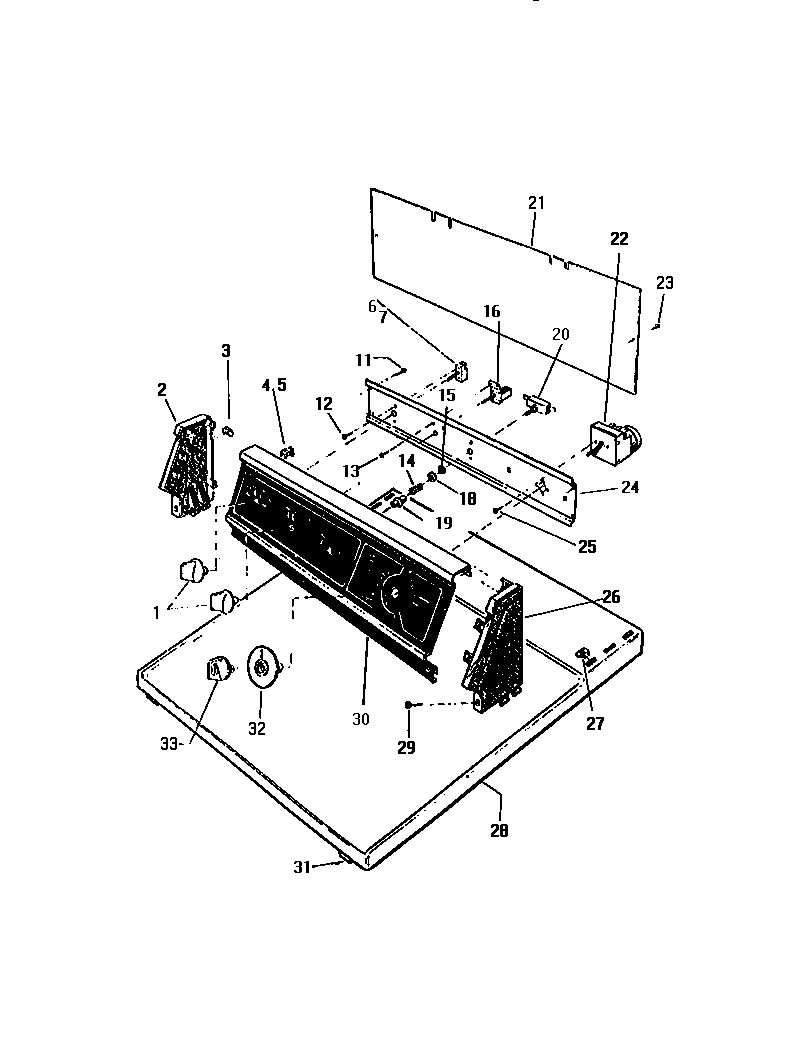

DE600EDH4 02 – CONSOLE, CONTROLS, TOP PANEL

Products

Position	Product
2	WCI Q616731
3	SPEEDNUT (8)
4	WCI Q504801
7	SWITCH, SELEC.
12	SCREW
13	SCREW (4)
14	WCI Q66793
15	WCI Q409004
16	WCI Q152913
18	WCI Q501450
19	WCI Q621231
20	START SWITCH
21	WCI Q616741
22	WCI Q168667
23	SCREW (4)
24	WCI Q616711
25	SCREW (4)
26	WCI Q616732
27	WCI Q503065
28	WCI Q621248
29	WCI Q504533
30	WCI Q616911
31	SPRING CATCH
32	WCI Q617641
33	KNOB TIMER
