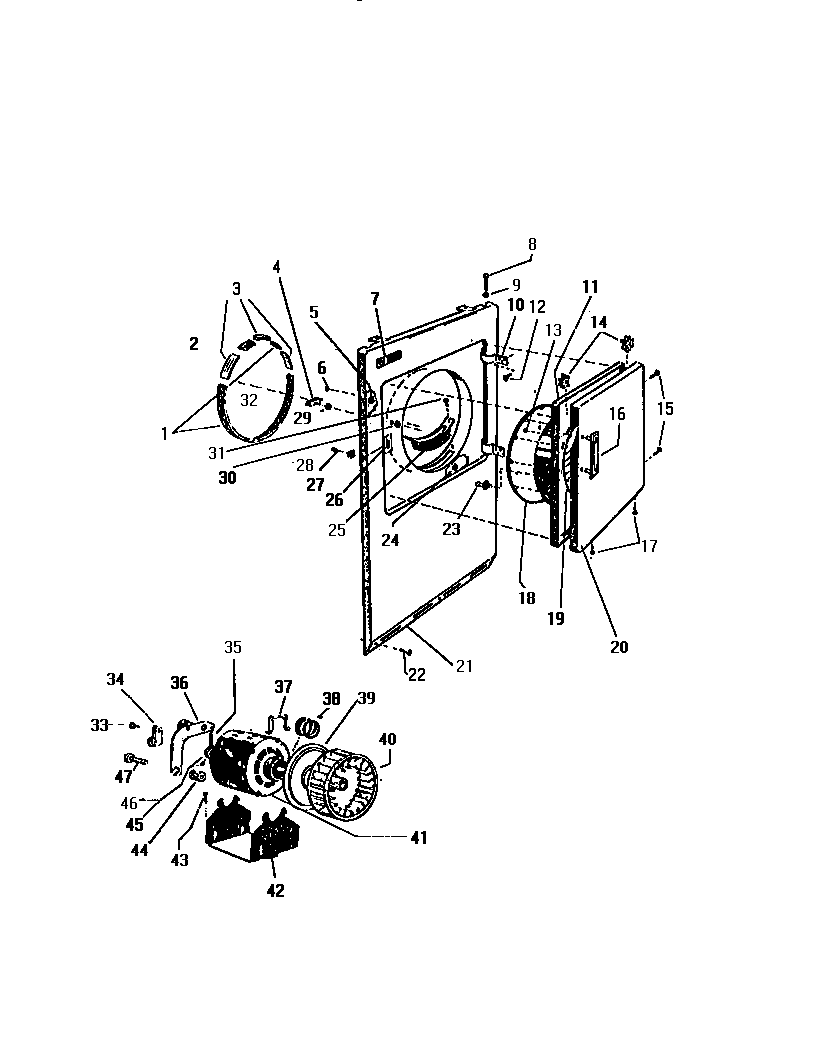

DE600EDV1 03 – FRONT PANEL, DOOR, MOTOR

Products

Position	Product
1	WCI Q142888
2	WCI Q15141
3	GUIDE KIT
4	START SWITCH
6	WCI Q505564
7	WCI Q604442
8	WCI Q55021
9	WCI Q500155
10	WCI Q94651
11	PANEL INNER DOOR, FR AV
12	WCI Q500433
13	WCI Q503952
14	WCI Q40120
16	WCI Q151326
17	WCI Q411004
18	WCI Q167701
19	SHIELD
20	PANEL OUTER DOOR, FR AV
21	PANEL FRONT, FR AV
22	WCI Q501687
23	WCI Q504552
24	WCI Q500255
25	WCI Q168541
26	WCI Q504551
27	WCI 1466314
28	WCI Q502482
29	WCI Q409004
30	WCI Q501450
31	WCI Q405802
32	WCI Q15142
33	WCI Q414002
34	CLAMP
35	SPRING
36	IDLER PULLEY AND BRACKET
37	WCI Q62206
38	WCI Q94715
39	WCI Q94948
40	WCI Q615901
41D	START SWITCH FOR Q615921 WW
41E	START SWITCH FOR Q616391 EMER.
41B	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
41C	START SWITCH FOR Q616401 GE
42	WCI Q94874
43	SCREW
44	WCI Q600179
45	SCREW
46	PULLEY (SEE NOTE 1)
47	WCI Q433401
