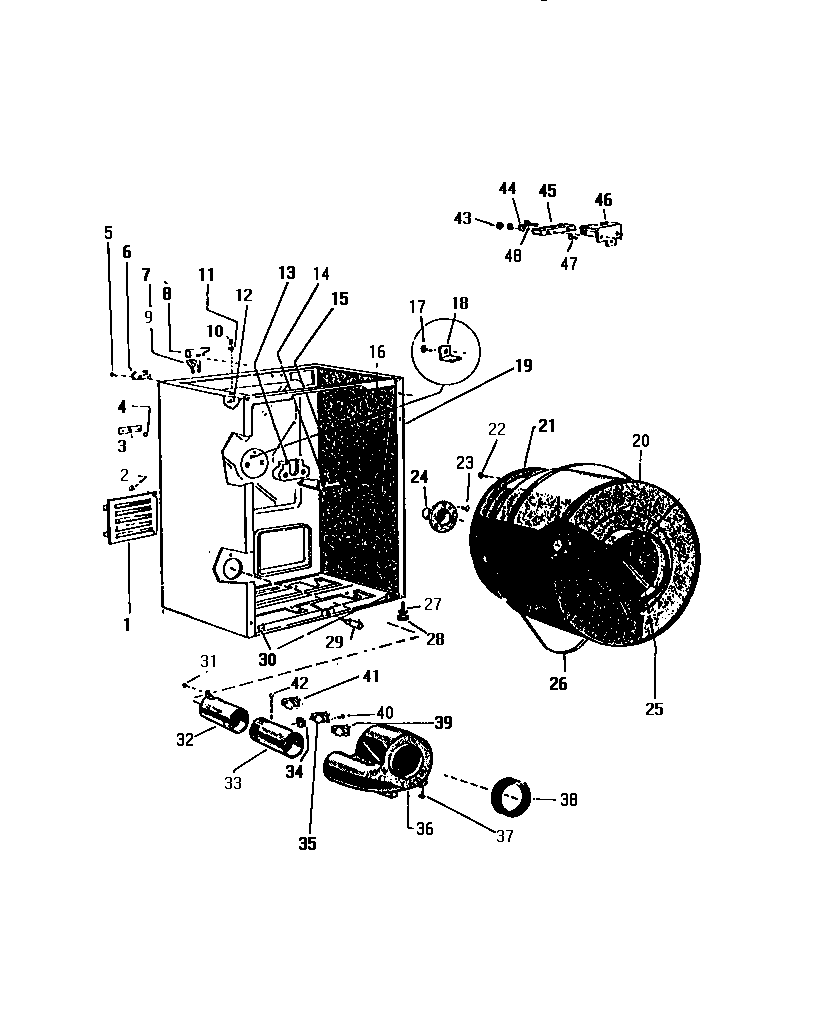

DE600EDW1 04 – CABINET, DRUM, FAN HOUSING

Products

Position	Product
*84722	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
1	WCI Q94811
3	SPEED NUT STRIP
4	BALL
6	WCI Q155561
7	WCI Q435098
8	WCI Q133281
9	WCI Q133283
10	WCI Q502482
11	WCI Q440067
12	WCI 1466314
13	BEARING
14	BRACKET
15	SCREW
17	WCI Q505564
18	BRACKET
19	BODY, WHITE (AVAILABLE DURING PRODUCTION ONLY)
20	SPINNER, BASKET
21	WCI Q165773
22	SCREW (3)
23	SCREW
24	SHAFT
25B	WCI Q501592
25	WCI Q615892
25A	WCI Q615891
26	WCI Q63807
27	WCI Q198170
28	WCI Q16971
29	WCI Q504281
30	WCI Q502956
32	WCI Q182901
33	WCI Q603012
34	WCI Q606131
36	WCI Q171281
37	SCREW (4)
38	WCI Q19462
39	THERMOSTAT, REGULAR HEAT
40	SCREW
41	THERMOSTAT, LOW HEAT
42	SCREW (4)
43	WCI Q401002
44	WCI Q440082
45	TERMINAL BLOCK
46	WCI Q133288
47	WCI Q409702
48	WCI Q403005
