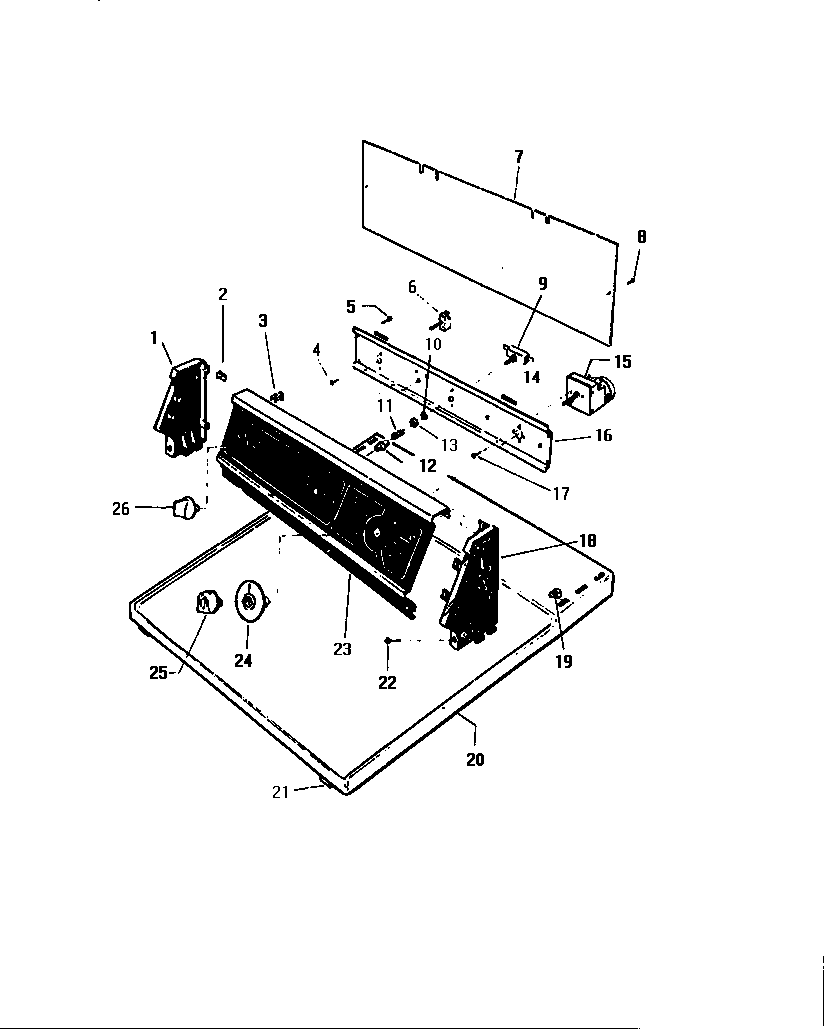

DE600JDD1 02 – CONSOLE & CONTROLS

Products

Position	Product
1	WCI Q616731
2	SPEEDNUT (8)
3	WCI Q504803
4	SCREW
5	SCREW (4)
6	SWITCH, SELECTOR
7	WCI Q616741
8	SCREW (4)
9	START SWITCH
10	WCI Q409004
11	WCI Q66793
12	WCI Q621233
13	WCI Q501450
14	WCI Q500925
15	WCI Q634301
16	WCI Q616711
17	SCREW (4)
18	WCI Q616732
19	WCI Q503065
20	WCI Q621246
21	WCI Q603041
22	WCI Q504533
23	WCI Q634051
24	WCI Q617641
25	KNOB TIMER
26	KNOB, SWITCH, SELECTOR
