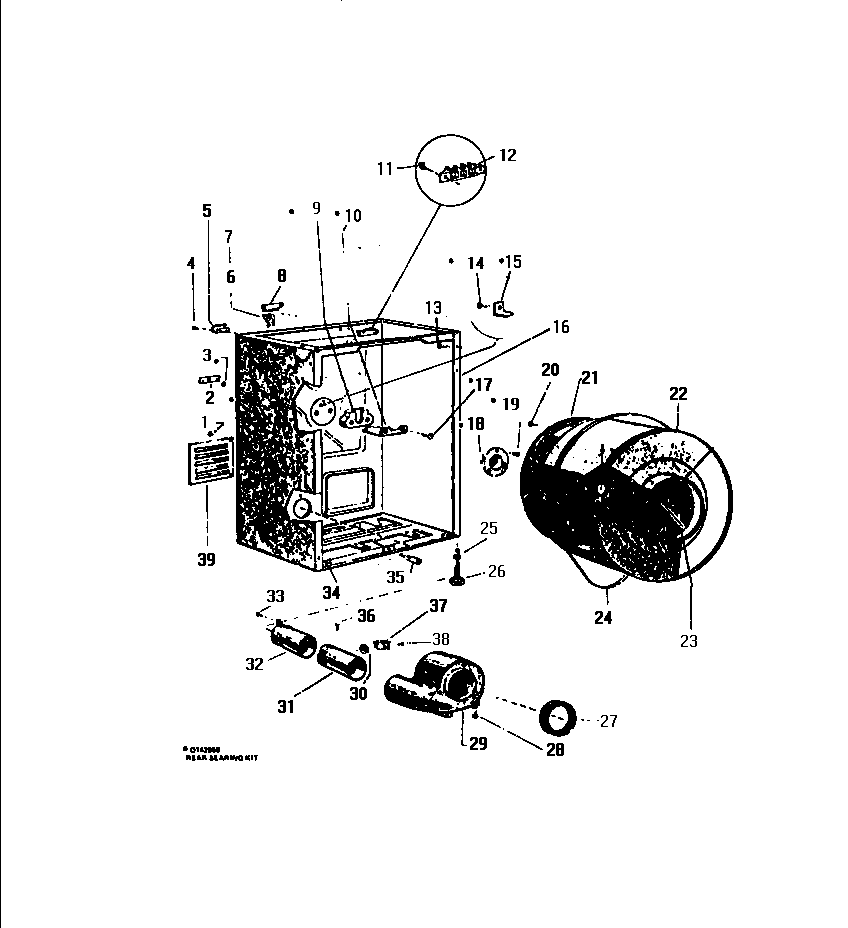

DE600JDF1 04 – BODY & DRUM

Products

Position	Product
*62086	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
2	SPEED NUT STRIP
3	WCI 022224
5	WCI Q155561
6	WCI Q133283
7	WCI Q435098
8	WCI Q167096
9	BEARING
10	BRACKET
12	WCI Q633751
14	WCI Q505564
15	BRACKET
16A	BODY, COFFEE
17	SCREW
18	SHAFT
19	WCI Q603210
20	SCREW (3)
21	WCI Q165773
22	SPINNER, BASKET
23A	WCI Q615891
23B	WCI Q501592
23	WCI Q615892
24	WCI Q63807
25	GROMMET ( FOOT BOLT )
26	WCI Q504971
27	WCI Q19462
28	SCREW (4)
29	WCI Q171281
30	WCI Q606131
31	DUCT, THERM.
32	WCI Q182901
34	WCI Q505011
35	TOGGLE KIT
36	SCREW (4)
37	WCI Q634401
38	SCREW
39	WCI Q94811
