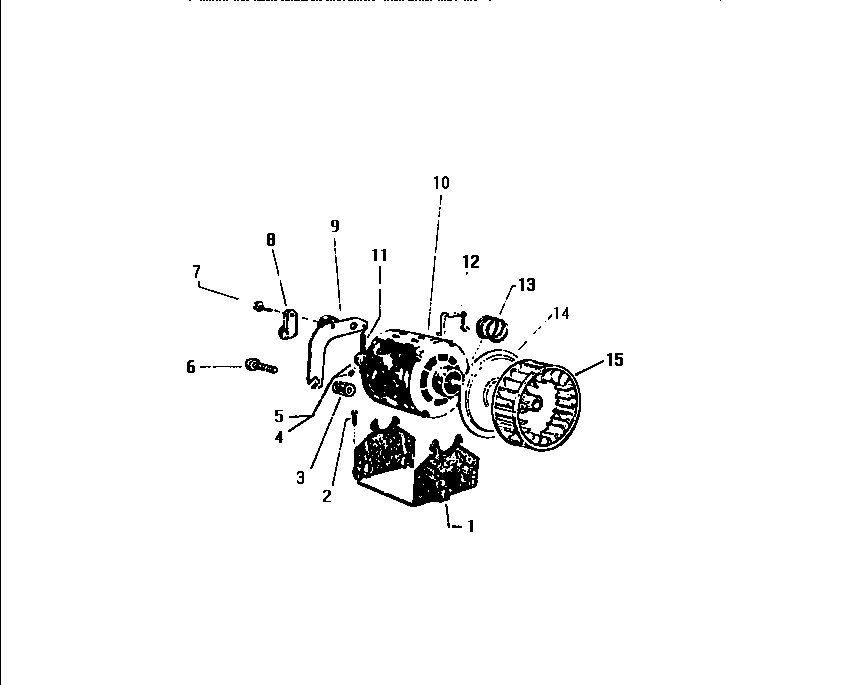

DE600JDW1 06 – MOTOR

Products

Position	Product
1	WCI Q94874
2	SCREW
3	WCI Q800179
4	WCI 1466511
5	PULLEY (SEE NOTE 1)
6	WCI Q433401
7	WCI Q414002
8	CLAMP
9	IDLER PULLEY AND BRACKET
10A	WCI Q6030186
10E	START SWITCH FOR Q616391 EMER.
10B	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
10C	START SWITCH FOR Q616401 GE
10D	START SWITCH FOR Q615921 WW
11	SPRING
12	WCI Q62206
13	WCI Q94715
14	WCI Q94948
15	WCI Q615901
