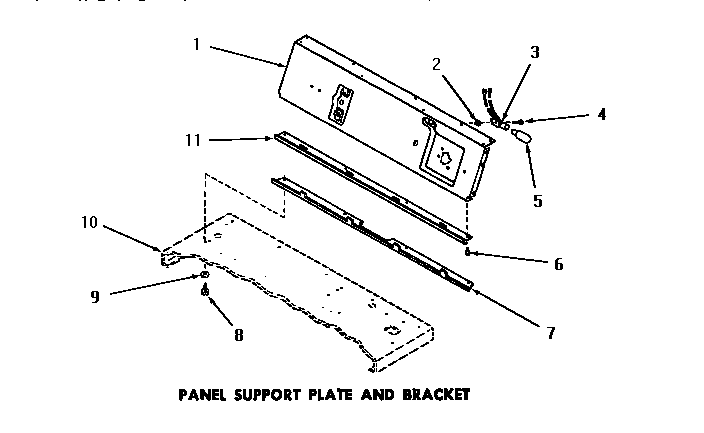

DE6051 18 – PANEL SUPPORT PLATE & BRACKET

DE6051 18 – PANEL SUPPORT PLATE & BRACKET

Written by

in

DE6051 18 – PANEL SUPPORT PLATE & BRACKET

Products

PositionProduct
1MAY 0054750
1MAY 53628
2MAY 22378
3MAY Y22368
4MAY 20268
5MAY 21608
6WP3177991 Whirlpool Screw
7MAY 52912
8WP90767 Whirlpool Screw
9MAY 20493
10SEE NOTE GROUND WIRE, GREEN
11MAY Y52929
