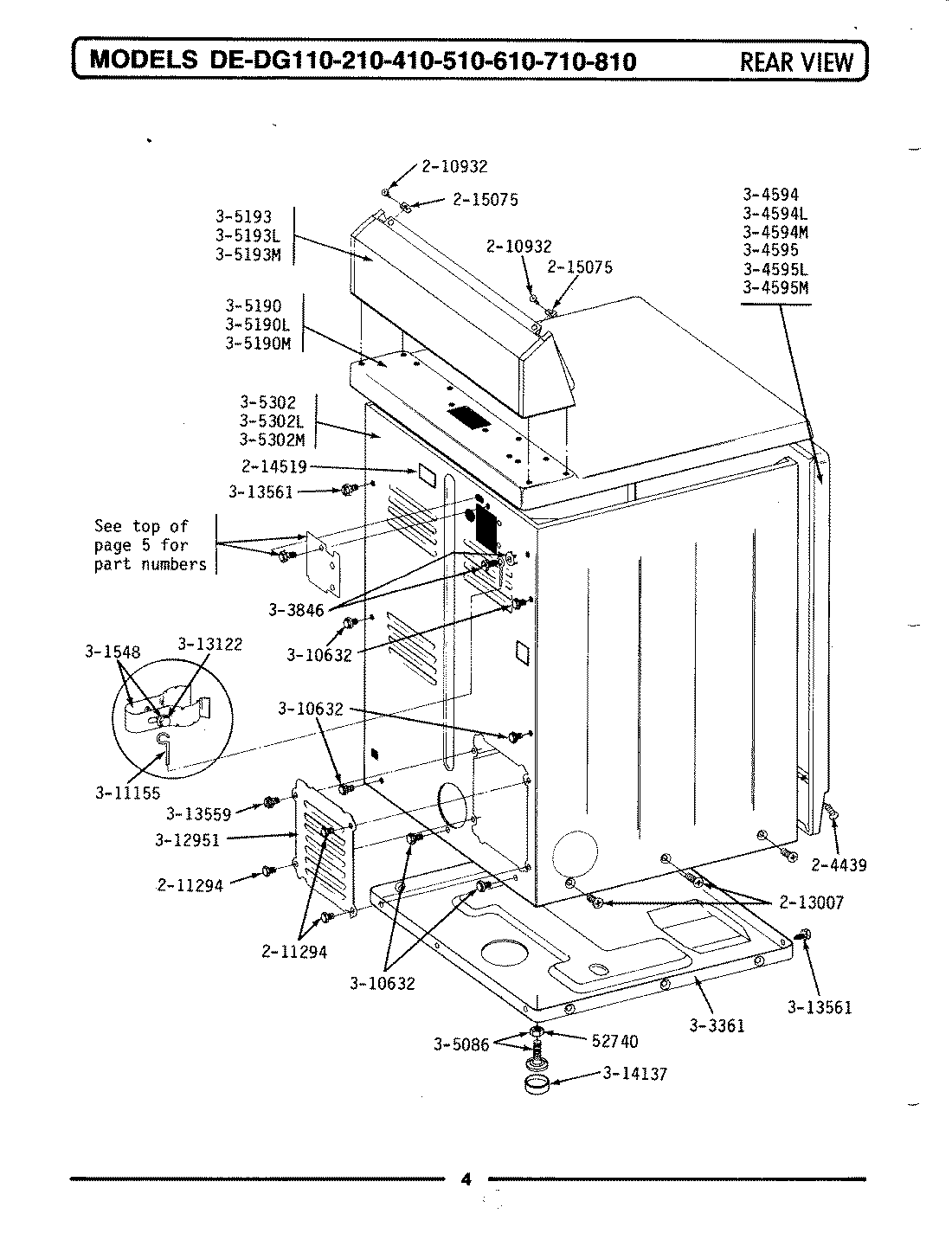

DE610 08 – REAR VIEW

DE610 08 – REAR VIEW

Written by

in

DE610 08 – REAR VIEW

Products

Position	Product
1	WP62739 Whirlpool Nut
2	MAY Y201808
3	SCREW & FSTNER ASSY (FT. PNL)
4	MAY 210932
5	WP90767 Whirlpool Screw
6	GROMMET
7	213007 Whirlpool Screw #12
8	INSTRUCTION LABEL
9	MAY 215075
10	MAY 301548
11	MAY 302521
12	MAY Y303361
13	MAY 303846
14	MAY 304594
15	MAY 304594L
16	MAY 304594M
17	MAY 304595
20	W10176519 Whirlpool Leveling Feet
21	MAY Y305190
24	MAY Y305193
27	MAY 305302
30	MAY Y310632
31	WP311155 Whirlpool Wire Assembly
32	WPY311270 Whirlpool Washer TE
33	PART NOT USED
34	WP112432 Whirlpool Nut Assembly
35	PART NOT USED
36	SCREW, No.10-24 X 3/4 INCH—–O
37	PART NOT USED
38	MAY Y312905
39	MAY Y312951
40	MAY 313122
41	MAY Y313559
42	MAY Y313561
43	WPY314137 Whirlpool Rubber Foot
44	PART NOT USED
