DE640JDV1 04 – DRUM – Aparts

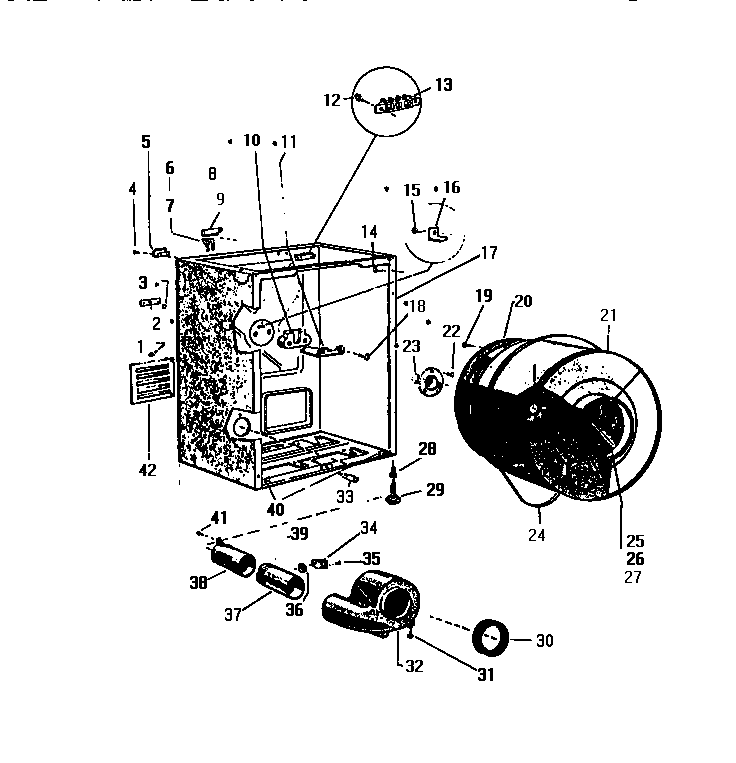

DE640JDV1 04 – DRUM

Products

Position	Product
*16400	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
2	SPEED NUT STRIP
3	BALL
5	WCI Q155561
6	WCI Q435098
7	WCI Q133283
8	WCI Q403102
9	WCI Q167096
10	BEARING
11	BRACKET
12	WCI Q435152
13	WCI Q633751
16	BRACKET
17	BODY
18	SCREW
19	SCREW (3)
20	WCI Q165773
21	SPINNER, BASKET
22	SCREW
23	SHAFT
24	WCI Q63812
25	WCI Q615892
26	WCI Q615891
27	WCI Q501592
28	GROMMET ( FOOT BOLT )
29	WCI Q504971
30	WCI Q19462
31	SCREW (4)
32	WCI Q171281
33	TOGGLE KIT
34	WCI Q634401
36	WCI Q606131
37	DUCT, THERM.
38	WCI Q182901
39	SCREW (4)
40	WCI Q505011
41	WCI Q505564
42	WCI Q94811
