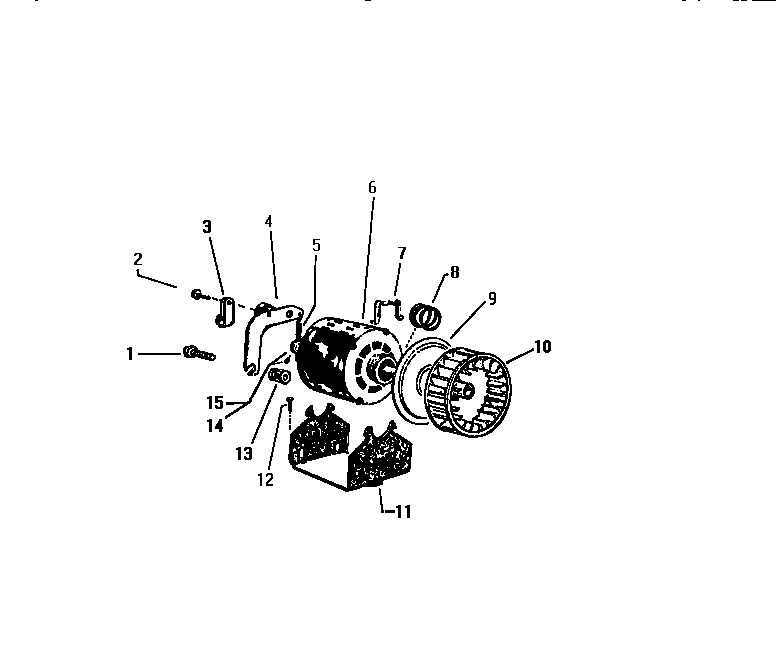

DE640JDW1 06 – MAIN MOTOR

Products

Position	Product
1	WCI Q433401
2	WCI Q414002
3	CLAMP
4	IDLER PULLEY AND BRACKET
5	SPRING
6B	MOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
6A	(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
6C	MOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
6F	START SWITCH FOR Q616391 EMER.
6	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
6E	START SWITCH FOR Q616401 GE
6D	START SWITCH FOR Q615921 WW
7	WCI Q62206
8	WCI Q94715
9	WCI Q94948
10	WCI Q615901
11	WCI Q94874
12	SCREW
13	WCI Q600179
14	SCREW
15	PULLEY (SEE NOTE 1)
