DE640KDW1 04 – CONSOLE AND CONTROL PARTS – Aparts

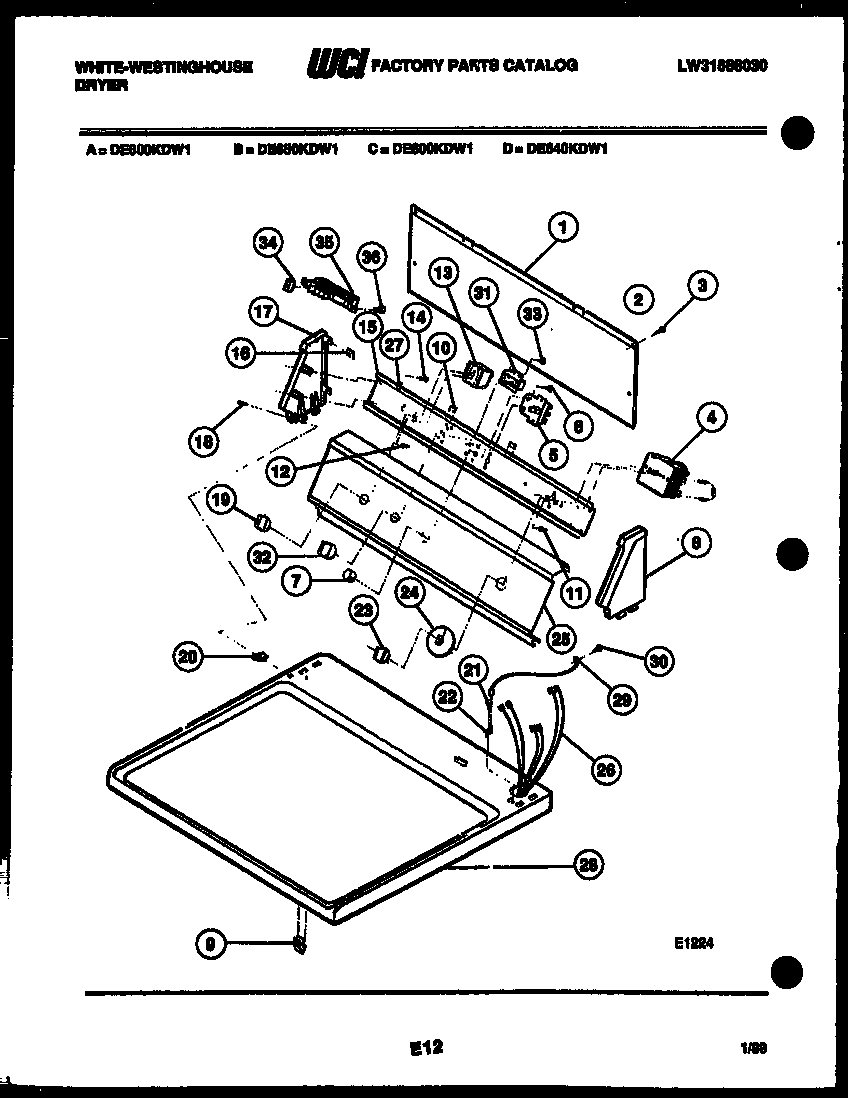

DE640KDW1 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
2	RESISTOR
3	SCREW
4	WCI Q000630113
5	SWITCH - START
6	WCI 08001544
7	WCI 3201221
8	WCI 3281191
9	SPRING CATCH
10	PAD
11	SCREW (2)
12	WCI 3281101
13	SWITCH-SELECTOR
14	SCREW (2)
15	BRACKET-MOUNTING
16	WCI F140666-000
17	WCI 3281189
18	SCREW (2)
19	WCI Q000633722
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI F079171-000
23	KNOB-TIMER
24	WCI 08015434
25	WCI Q000634061
26	WCI 3201307
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
27	CLIP-GROUND
28	PANEL-TOP WHITE
29	WCI 3201308
30	SCREW (2)
