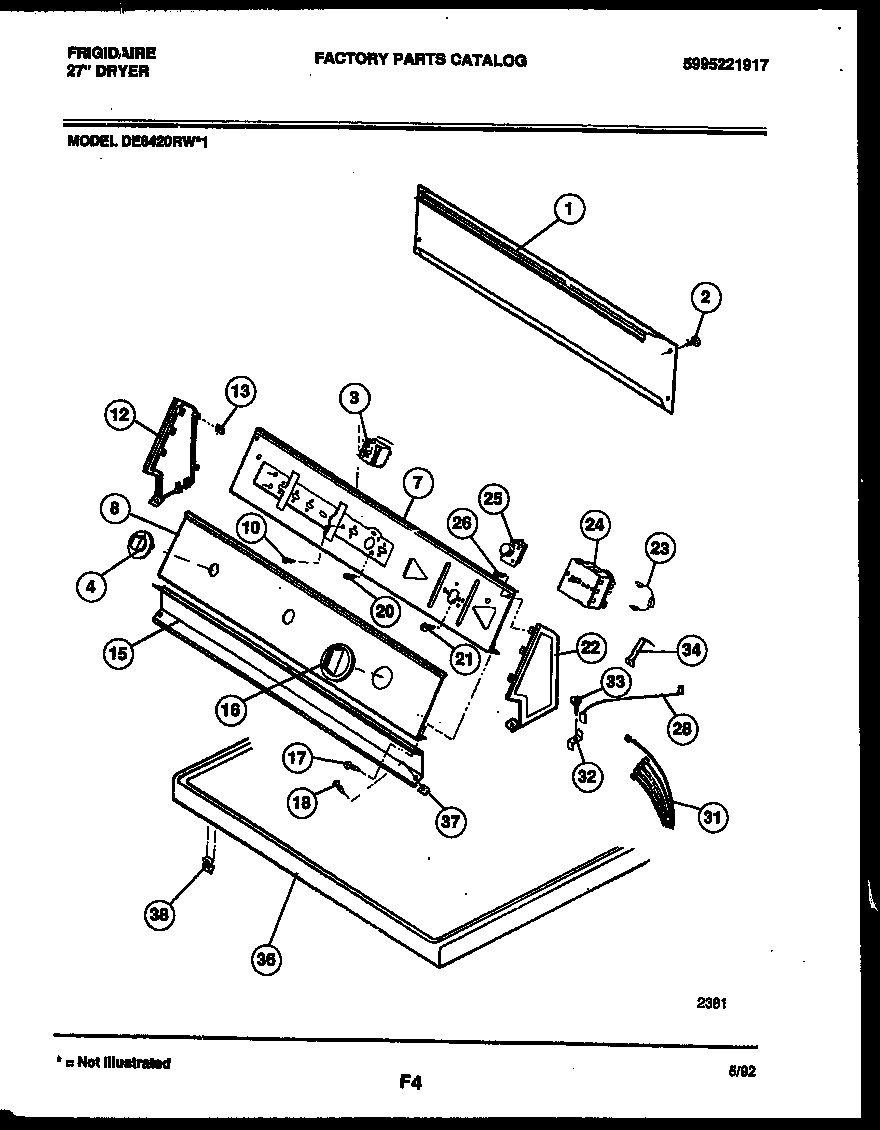

DE6420RW1 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	BACK COVER
2	5303015671 Frigidaire Bracket Termination Screw
3	WCI 3201468
4	WCI 5303270990
7	WCI 131013200
8	WCI 131021600
10	WCI 3161259
12	WCI 5303270198
13	CLIP (8)
15	TRIMPLATE LOWER
16	WCI 5303280420
17	WCI 5303279341
18	WCI 5303279343
20	WCI 08001544
21	SCREW (2)
22	WCI 5303270200
23	RESISTOR
24	WCI 3201383
25	WCI 5303210198
26	SCREW (2)
28	WCI 3201385
31	WCI 131032600
31A	5303303590 Frigidaire Dryer 4.0" Cable Tie
32	WCI 5379171000
33	131243800 Frigidaire Screw
34	WCI 08014349
36	PANEL-TOP-WHITE
37	CLIP
38	3205821 Frigidaire Clip
