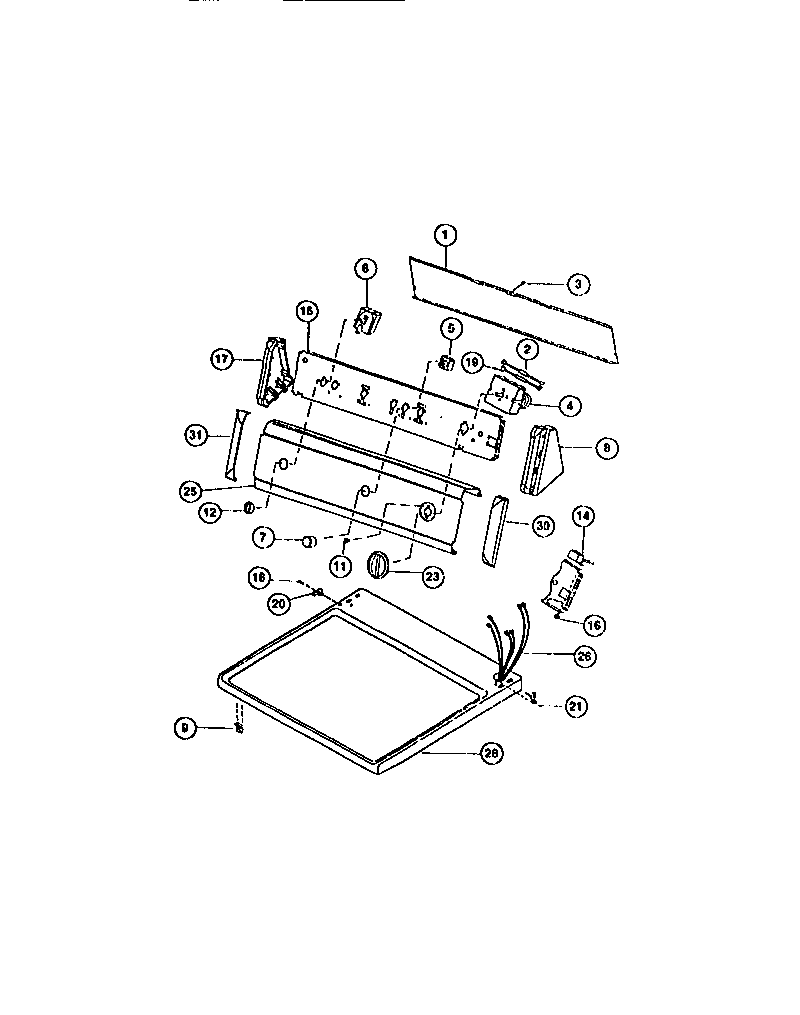

DE6500ADD1 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1BACKSHEET
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4131719100 Frigidaire Timer Assembly
5WCI 131048000
6WCI 131048100
7WCI 131141302
8WCI 131122702
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12WCI 131141102
14WCI 5303210285
15BRACKET CONTROLS
165303015671 Frigidaire Bracket Termination Screw
17WCI 131122712
18WCI 3205820
20CLIP
21131243800 Frigidaire Screw
23WCI 131141002
25WCI 131176000
26WCI 131158500
28WCI 131130304
30WCI 131122602
31WCI 131122612
