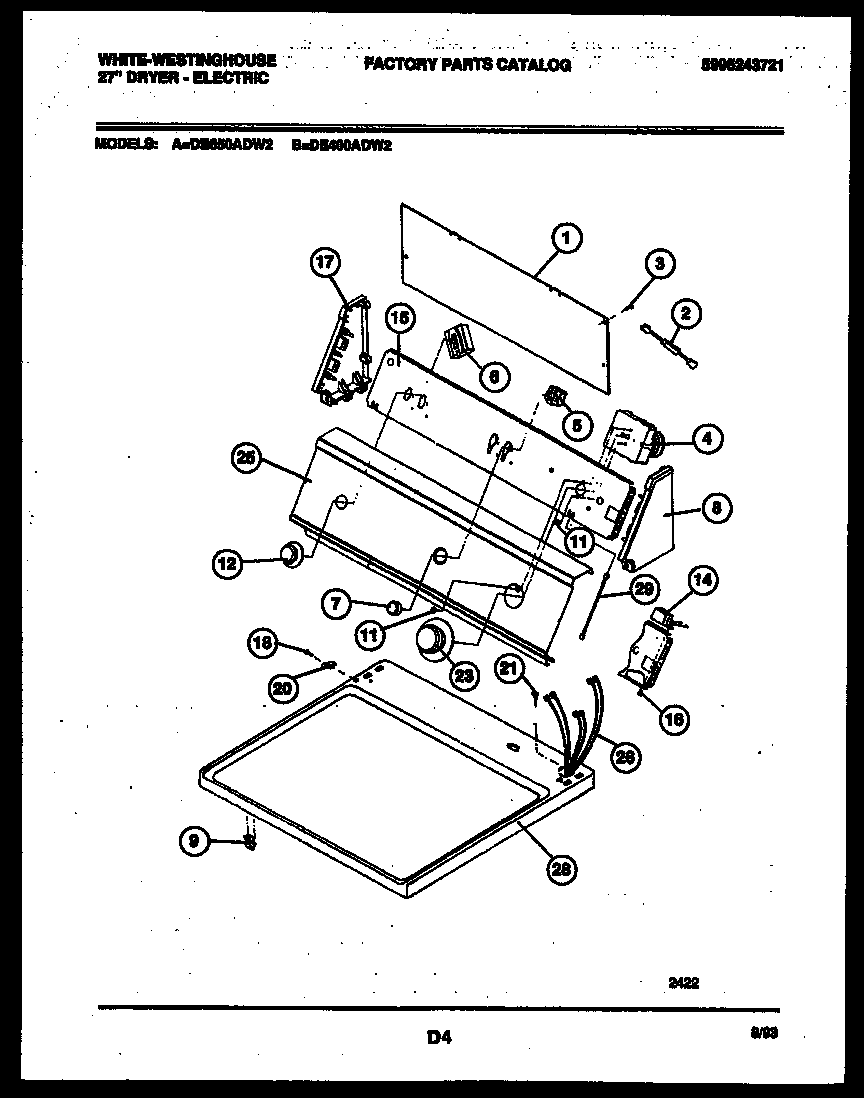

DE650ADD2 04 – CONSOLE AND CONTROL PARTS

DE650ADD2 04 – CONSOLE AND CONTROL PARTS

Written by

in

DE650ADD2 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
2RESISTOR
3131205100 Frigidaire Screw
4131719100 Frigidaire Timer Assembly
5WCI 131048000
6WCI 131048100
7WCI 131032900
8WCI 5303291352
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12WCI 131118600
14WCI 5303210285
15BRACKET – CONTROL
165303015671 Frigidaire Bracket Termination Screw
17WCI 5303291344
18WCI 5303289526
20CLIP
21131243800 Frigidaire Screw
23WCI 131118900
25WCI 131124000
26WCI 131158500
28WCI 131130304
29WCI 131062202
