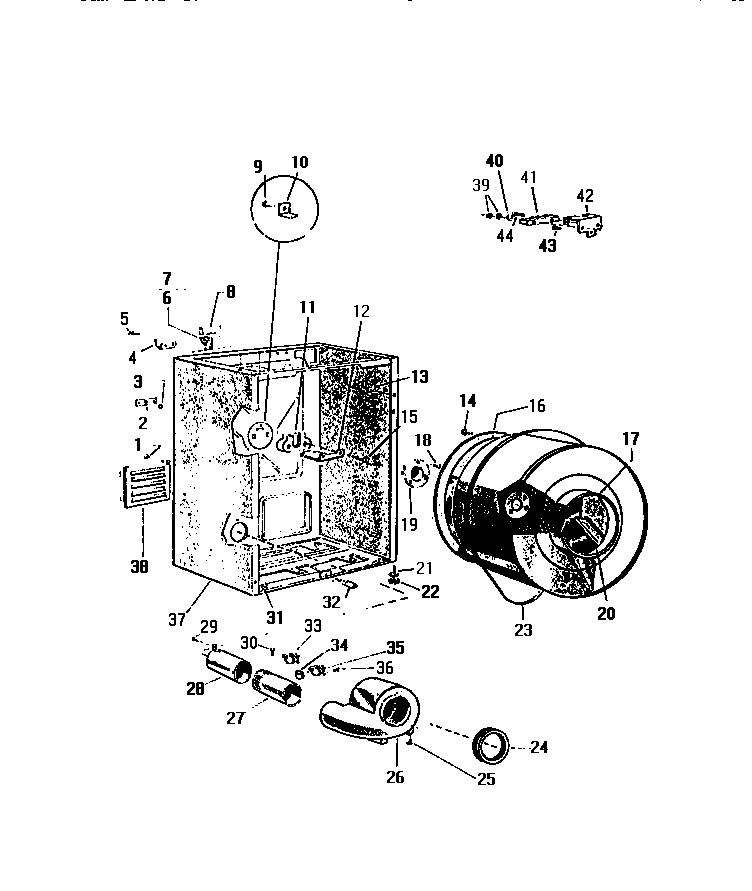

DE650EDD4 04 – CABINET, DRUM, HEATER HOUSING

DE650EDD4 04 – CABINET, DRUM, HEATER HOUSING

Written by

in

DE650EDD4 04 – CABINET, DRUM, HEATER HOUSING

Products

Position	Product
*38244	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
2	SPEED NUT STRIP
3	BALL
4	WCI Q155561
6	WCI Q133283
6A	WCI Q435098
8	WCI Q133281
10	BRACKET
11	BEARING
12	BRACKET
13	WCI Q505564
14	SCREW (3)
15	SCREW
16	WCI Q165773
17	SPINNER, BASKET
18	SCREW
19	SHAFT
20A	WCI Q615891
20	WCI Q615892
20B	WCI Q501592
21	WCI Q16567
22	WCI Q16971
23	WCI Q63807
24	WCI Q19462
25	SCREW (4)
26	WCI Q171281
27	WCI Q603012
28	WCI Q182901
30	SCREW (4)
31	WCI Q502956
32	WCI Q504281
33	THERMOSTAT, LOW HEAT
34	WCI Q606131
35	THERMOSTAT, REGULAR HEAT
36	SCREW
37	BODY, ALMD
38	WCI Q94811
39	WCI Q401002
40	WCI Q440082
41	TERMINAL BLOCK
42	WCI Q133288
43	WCI Q409702
44	WCI Q403005
