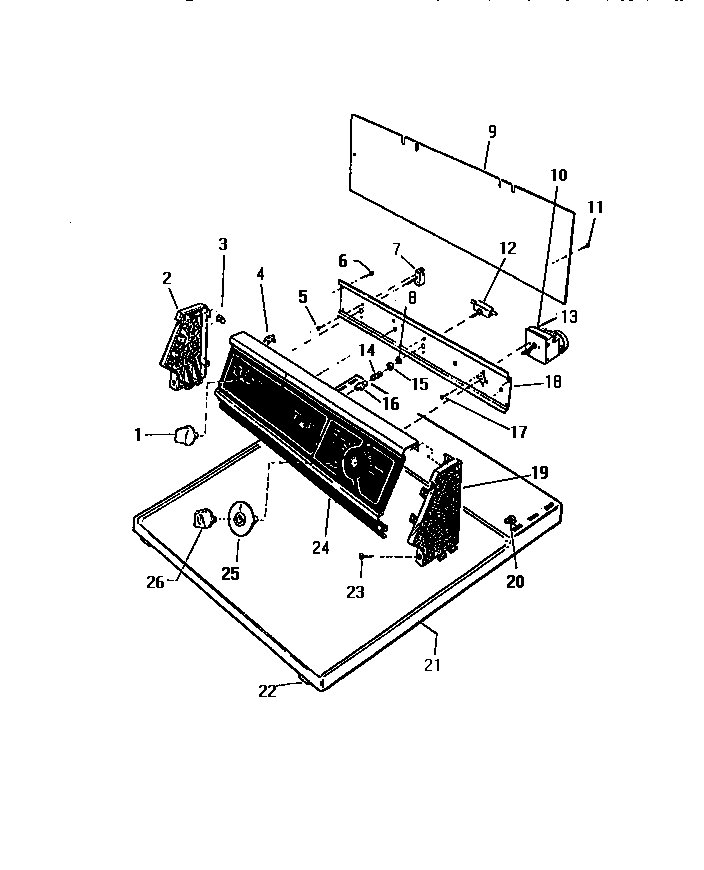

DE650EDW5 02 – CONSOLE & CONTROLS

Products

Position	Product
2	WCI Q616731
3	SPEEDNUT (8)
4	WCI Q504803
5	SCREW
6	SCREW (4)
7	SWITCH, SELEC.
8	WCI Q409004
9	WCI Q616741
10	WCI Q630113
11	SCREW (4)
12	START SWITCH
13	WCI Q198189
14	WCI Q66793
15	WCI Q501450
16	WCI Q621231
17	SCREW (4)
18	WCI Q616711
19	WCI Q616732
20	WCI Q503065
21	PANEL, TOP, WHITE
22	SPRING CATCH
23	WCI Q504533
24	WCI Q631181
25	WCI Q617641
26	KNOB TIMER
