DE650JDH1 02 – CONSOLE & CONTROLS

DE650JDH1 02 – CONSOLE & CONTROLS

Written by

in

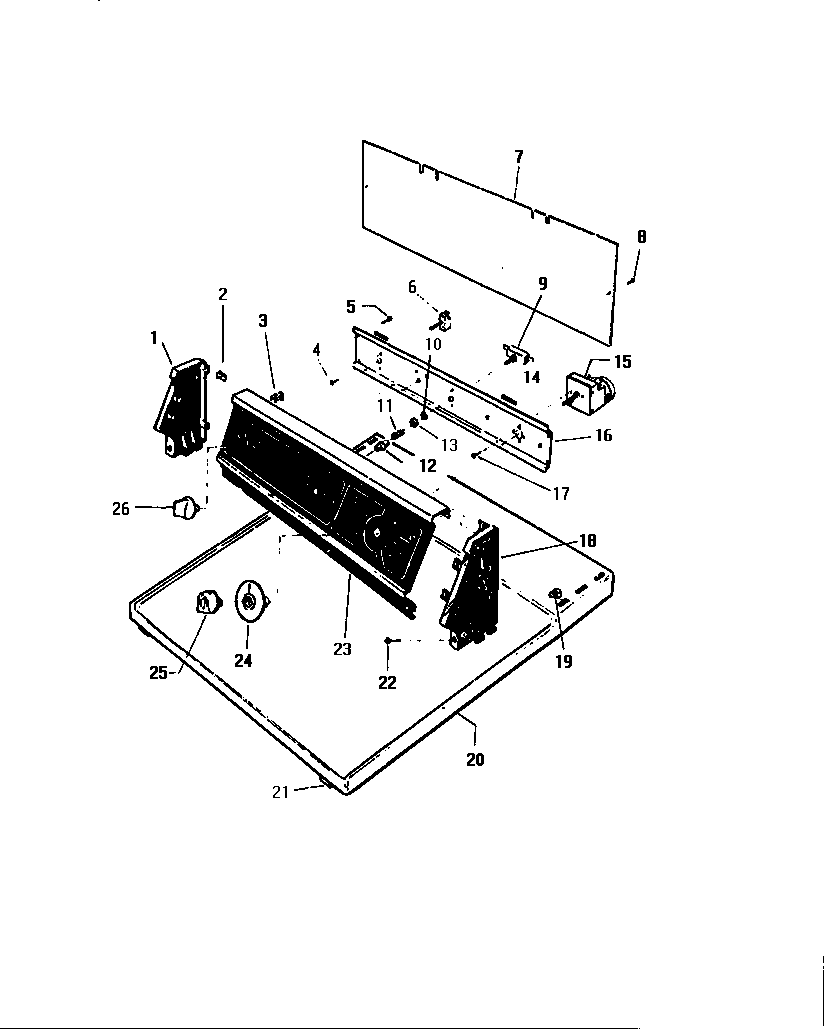

DE650JDH1 02 – CONSOLE & CONTROLS

Products

Position	Product
1	WCI Q616731
2	SPEEDNUT (8)
3	WCI Q504803
4	SCREW
5	SCREW (4)
6	SWITCH, SELECTOR
7	WCI Q616741
8	SCREW (4)
9	START SWITCH
10	WCI Q409004
11	WCI Q66793
12	WCI Q621233
13	WCI Q501450
14	WCI Q500925
15A	WCI Q630113
16	WCI Q616711
17	SCREW (4)
18	WCI Q616732
19	WCI Q503065
20B	WCI Q621248
21	WCI Q603041
22	WCI Q504533
23A	WCI Q634061
24	WCI Q617641
25	KNOB TIMER
26	KNOB, SWITCH, SELECTOR
