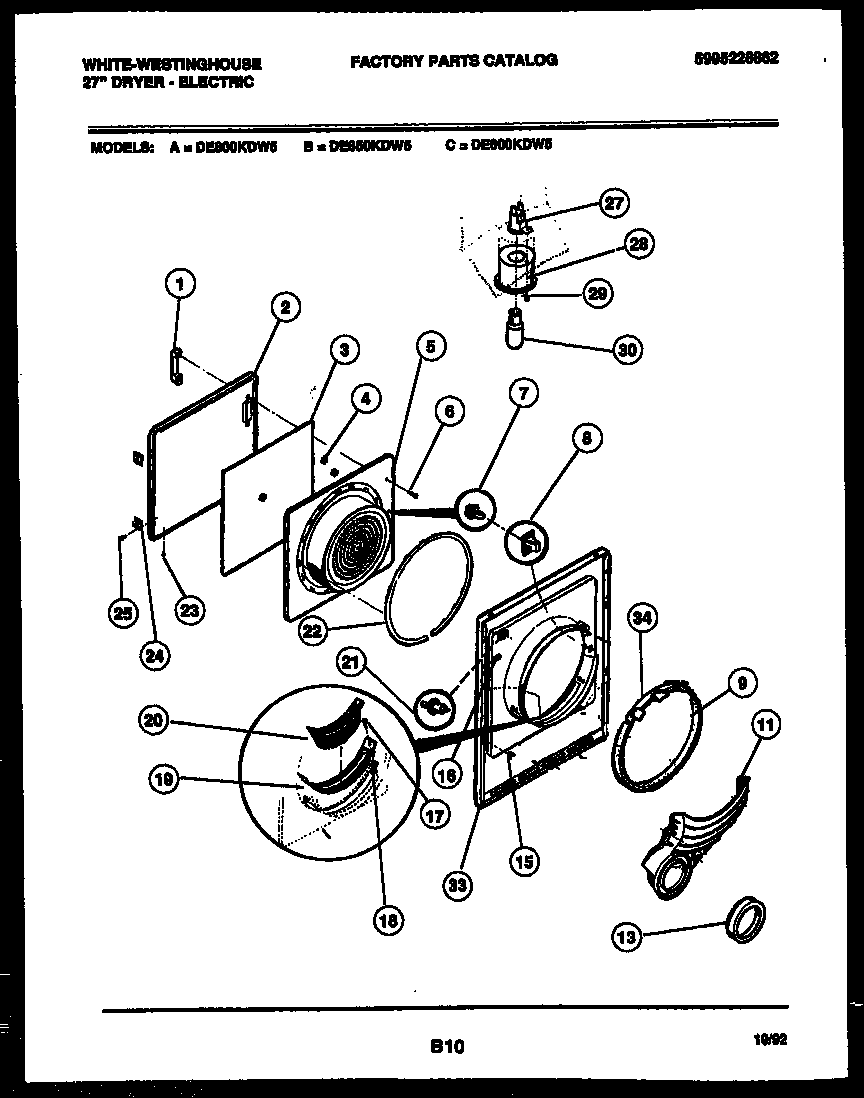

DE650KDD5 03 – DOOR PARTS

Products

Position	Product
1	WCI 3281053
2	PANEL-O.D. ALMD
3	HEAT SHIELD
4	WCI 3201205
4	SPACER (2)
5	PANEL-I.D. ALMD
6	WCI 3281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	SEAL
11	WCI 131002500
13	134417000 Frigidaire Seal
15	CLIP-GUIDE (4)
16	CLIP (4)
17	131420300 Frigidaire Screw
18	CLIP (2)
19	WCI 3281060
20	TRAP-LINT
21	SWITCH-DOOR
22	WCI 3201210
24	DOOR HINGE (2)
25	SCREW (8)
33	WCI 5303290083
34	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
