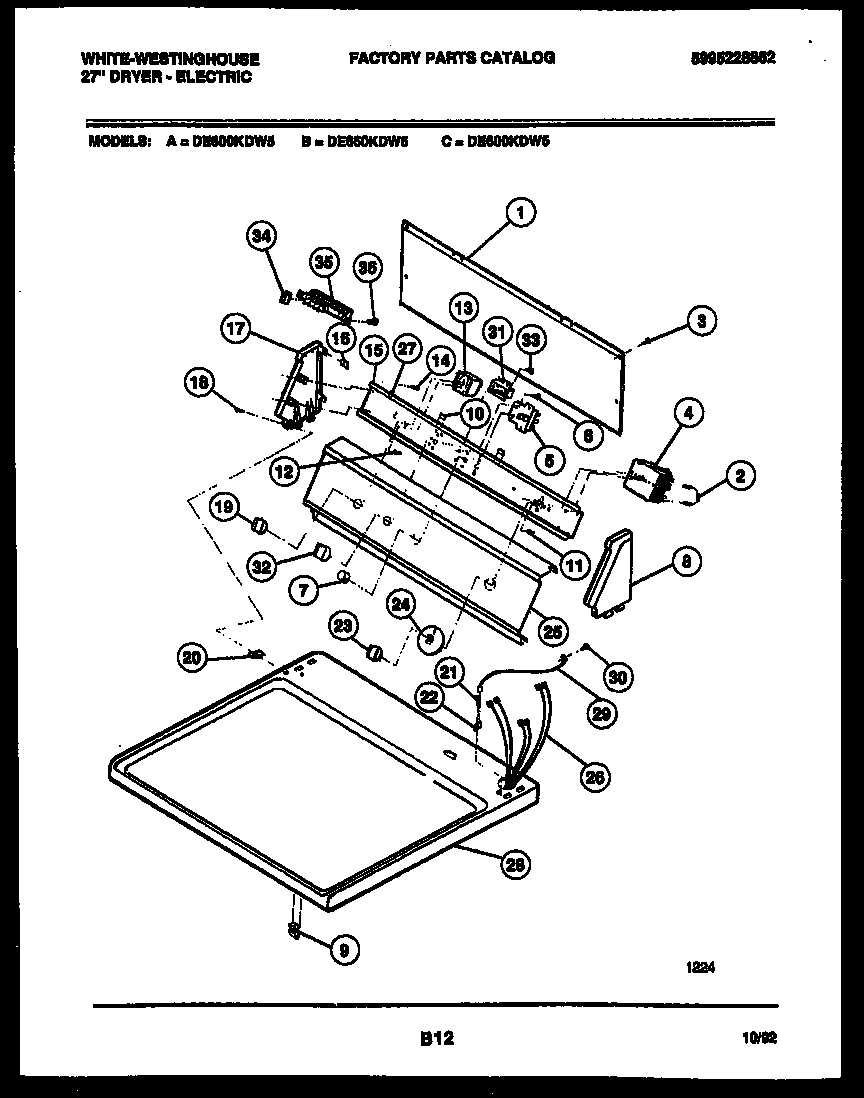

DE650KDW5 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*69621	WCI 5303210285
*69621	5303015671 Frigidaire Bracket Termination Screw
1	BACK COVER
2	RESISTOR
3	SCREW
4	131719100 Frigidaire Timer Assembly
5	SWITCH - START
6	WCI 08001544
7	WCI 3201221
8	WCI 3205840
9	3205821 Frigidaire Clip
10	PAD (2)
11	218359202 Frigidaire Refrigerator Screw
12	WCI 3281101
13	SWITCH-SELECTOR
14	SCREW (2)
15	WCI 5303285145
16	CLIP (8)
17	WCI 3205842
18	SCREW (2)
19	WCI 5300633722
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI 5379171000
23	KNOB-TIMER
24	WCI 08015434
25	WCI 3206029
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
26	WCI 131005800
27	WCI 3281200
28	PANEL-TOP-WHITE
29	WCI 3201308
30	SCREW (2)
