DE651EDD4 02 – CONSOLE & CONTROLS

DE651EDD4 02 – CONSOLE & CONTROLS

Written by

in

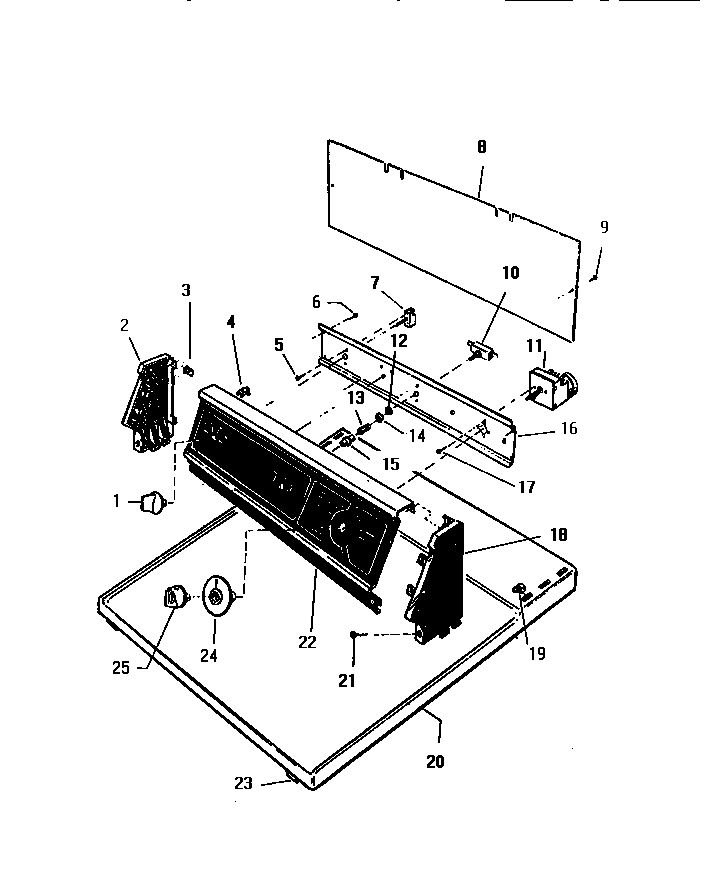

DE651EDD4 02 – CONSOLE & CONTROLS

Products

Position	Product
1	WCI 0617652
2	WCI 0616731
3	SPEEDNUT (8)
4	WCI Q504801
5	SCREW
6	SCREW (4)
7	SWITCH, SELEC.
8	WCI Q616741
9	SCREW (4)
10	START SWITCH
11	WCI Q630113
12	WCI Q409004
13	WCI Q66793
14	WCI Q501450
15	WCI Q621231
16	WCI Q616711
17	SCREW (4)
18	WCI Q616732
19	WCI Q503065
20	WCI Q621246
21	WCI Q504533
22	WCI Q631181
23	SPRING CATCH
24	WCI Q617641
25	KNOB TIMER
