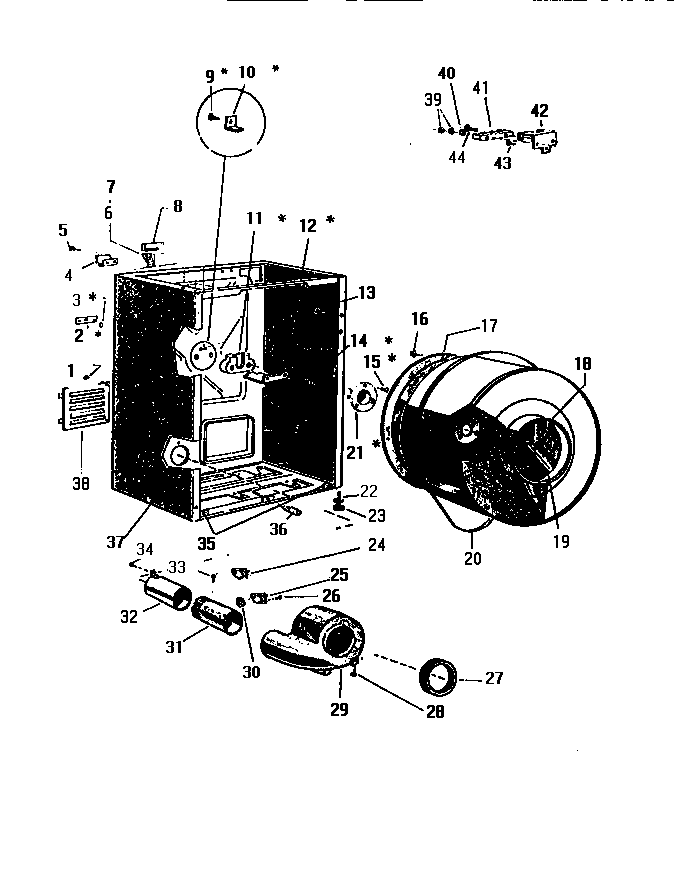

DE651EDD4 04 – CABINET, & DRUM

DE651EDD4 04 – CABINET, & DRUM

Written by

in

DE651EDD4 04 – CABINET, & DRUM

Products

PositionProduct
*90364REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
2SPEED NUT STRIP
3BALL
4WCI Q155561
6WCI Q435098
7WCI Q133283
8WCI Q133281
10BRACKET
11BEARING
12BRACKET
13WCI Q505564
14Q435046
15SCREW
16SCREW (3)
17WCI Q165773
18SPINNER, BASKET
19WCI Q501592
19WCI Q615893
19WCI Q615894
20WCI Q63807
21SHAFT
22WCI Q198170
23WCI Q16971
24THERMOSTAT, LOW HEAT
25THERMOSTAT, REGULAR HEAT
26SCREW
27WCI Q19462
28SCREW (4)
29WCI Q171281
30WCI Q606131
31WCI Q603012
32WCI Q182901
34SCREW (4)
35WCI Q500786
36WCI Q504281
37BODY, ALMD
38WCI Q94811
39WCI Q401002
40WCI Q440082
41TERMINAL BLOCK
42WCI Q133288
43WCI Q409702
44WCI Q403005
