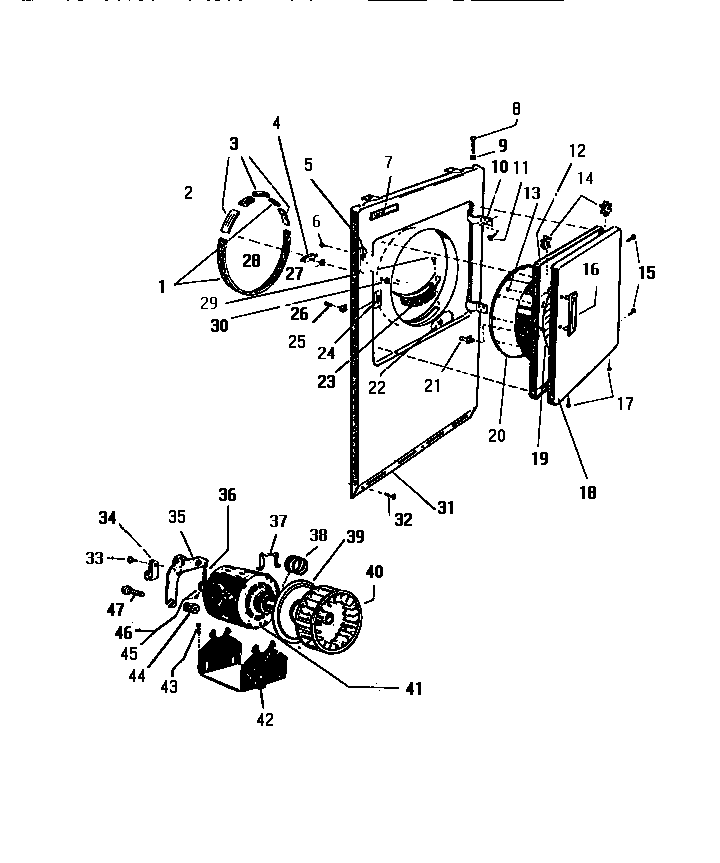

DE651EDD5 03 – FRONT PANEL, DOOR & MOTOR

Products

Position	Product
1	WCI Q142888
2	WCI Q15141
3	WCI G142887
4	WCI Q622422
5	WCI Q500255
6	WCI Q505564
7	WCI Q604442
8	WCI Q55021
9	WCI Q500155
10	WCI Q94651
11	WCI Q500433
12	PANEL INNER DOOR, ALMD
13	WCI Q503952
14	WCI Q631591
16	WCI Q151326
17	WCI Q411004
18	PANEL OUTER DOOR, ALMD
19	SHIELD
20	WCI Q167703
21	WCI Q504552
22	WCI Q500265
23	WCI Q168541
24	WCI Q504551
25	WCI 1466314
26	WCI Q502482
27	WCI Q409004
28	WCI Q15142
29	WCI Q405802
30	WCI Q501450
31	WCI Q632691
33	WCI Q414002
34	CLAMP
35	IDLER PULLEY AND BRACKET
36	SPRING
37	WCI Q62206
38	WCI Q94715
39	WCI Q94948
40	WCI Q615901
41	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
41C	MOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
41B	MOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
41A	(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
41D	START SWITCH FOR Q615921 WW
41E	START SWITCH FOR Q616401 GE
41F	START SWITCH FOR Q616391 EMER.
42	WCI Q94874
43	SCREW
44	WCI Q600179
45	SCREW
46	PULLEY (SEE NOTE 1)
47	WCI Q433401
