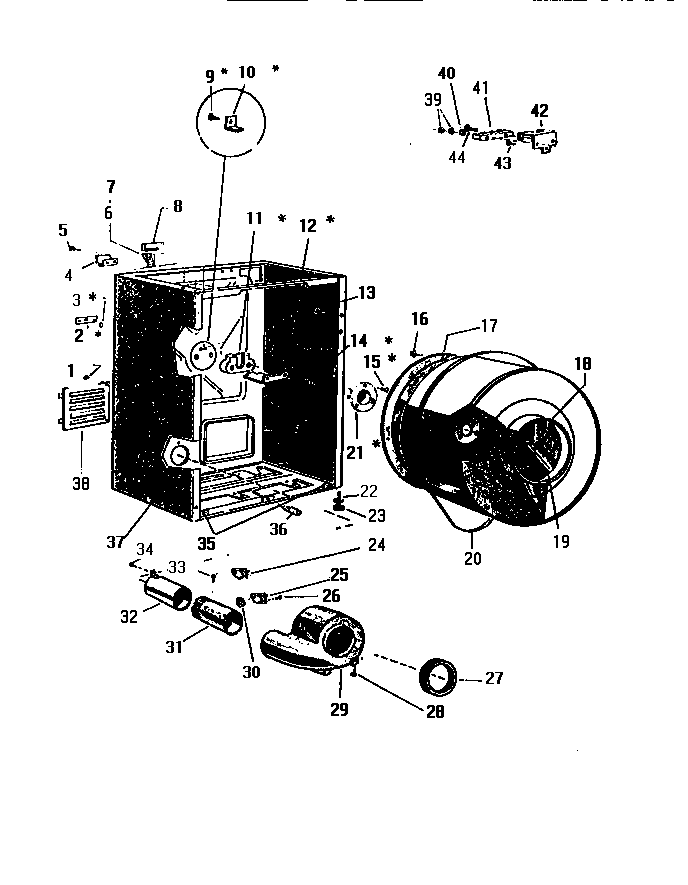

DE651EDD5 04 – CABINET, & DRUMadmin2025-04-26T08:53:03+00:00DE651EDD5 04 – CABINET, & DRUM
Products
| Position | Product |
|---|
| *90364 | REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21) |
| 2 | SPEED NUT STRIP |
| 3 | BALL |
| 4 | WCI Q155561 |
| 6 | WCI Q435098 |
| 7 | WCI Q133283 |
| 8 | WCI Q133281 |
| 10 | BRACKET |
| 11 | BEARING |
| 12 | BRACKET |
| 13 | WCI Q505564 |
| 14 | Q435046 |
| 15 | SCREW |
| 16 | SCREW (3) |
| 17 | WCI Q165773 |
| 18 | SPINNER, BASKET |
| 19 | WCI Q501592 |
| 19 | WCI Q615894 |
| 19 | WCI Q615893 |
| 20 | WCI Q63807 |
| 21 | SHAFT |
| 22 | WCI Q198170 |
| 23 | WCI Q16971 |
| 24 | THERMOSTAT, LOW HEAT |
| 25 | THERMOSTAT, REGULAR HEAT |
| 26 | SCREW |
| 27 | WCI Q19462 |
| 28 | SCREW (4) |
| 29 | WCI Q171281 |
| 30 | WCI Q606131 |
| 31 | WCI Q603012 |
| 32 | WCI Q182901 |
| 34 | SCREW (4) |
| 35 | WCI Q500786 |
| 36 | WCI Q504282 |
| 37 | BODY, ALMD |
| 38 | WCI Q94811 |
| 39 | WCI Q401002 |
| 40 | WCI Q440082 |
| 41 | TERMINAL BLOCK |
| 42 | WCI Q133288 |
| 43 | WCI Q409702 |
| 44 | WCI Q403005 |
