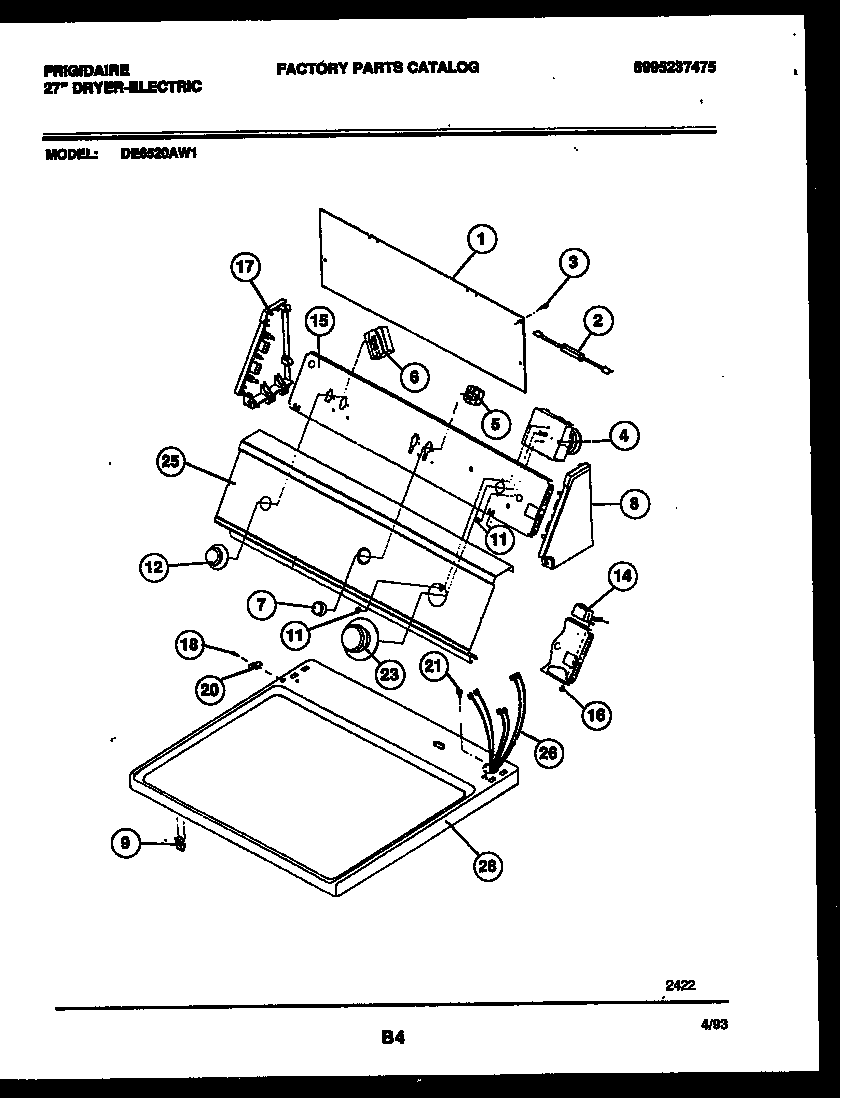

DE6520AW1 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
2	RESISTOR-POWER, 4.4K
3	131205100 Frigidaire Screw
4	131719100 Frigidaire Timer Assembly
5	WCI 131048000
6	WCI 131048100
7	WCI 131032900
8	WCI 5303291352
9	3205821 Frigidaire Clip
11	218359202 Frigidaire Refrigerator Screw
12	WCI 131081000
14	WCI 5303210285
15	BRACKET CONTROLS
16	5303015671 Frigidaire Bracket Termination Screw
17	WCI 5303291344
18	WCI 5303289526
20	CLIP
21	131243800 Frigidaire Screw
22	WCI 5379171000
23	KNOB-TIMER
25	WCI 131193400
26	WCI 131158500
28	PANEL-TOP-WHITE
