DE661JDH1 04 – CABINET, DRUM, HEATER HOUSING – Aparts

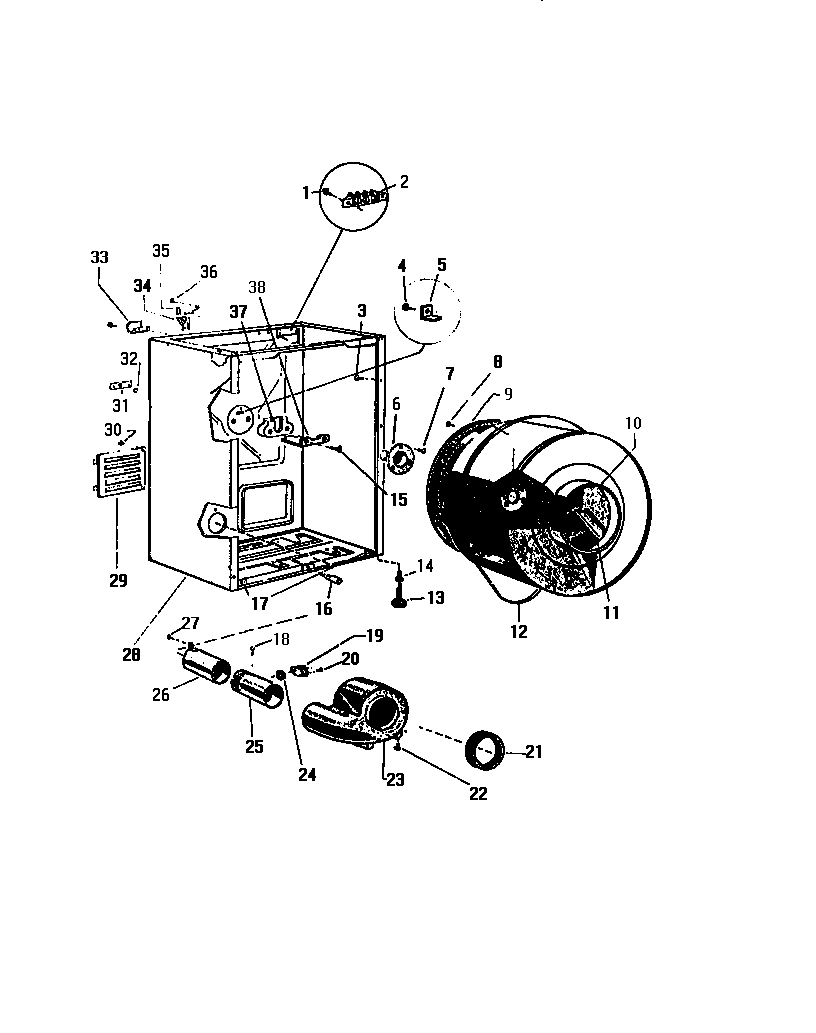

DE661JDH1 04 – CABINET, DRUM, HEATER HOUSING

Products

Position	Product
*76925	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
2	WCI Q633751
5	BRACKET
6	SHAFT
7	SCREW
8	SCREW (3)
9	WCI Q165773
10	SPINNER, BASKET
11	WCI Q615892
11B	WCI Q501592
11A	WCI Q615891
12	WCI Q63812
13	WCI Q504971
14	GROMMET ( FOOT BOLT )
15	SCREW
16	TOGGLE KIT
17	WCI Q505011
19	WCI Q634401
21	WCI Q19462
22	SCREW (4)
23	WCI Q171281
24	WCI Q606131
25	DUCT, THERM.
26	WCI Q182901
27	WCI Q505564
28	BODY, WHEAT
29	WCI Q94811
30	SCREW (4)
31	SPEED NUT STRIP
32	BALL
33A	WCI 505564
33	WCI Q155561
34A	WCI Q435098
34	WCI Q133283
35	WCI Q167096
36	WCI Q403102
37	BEARING
38	BRACKET
