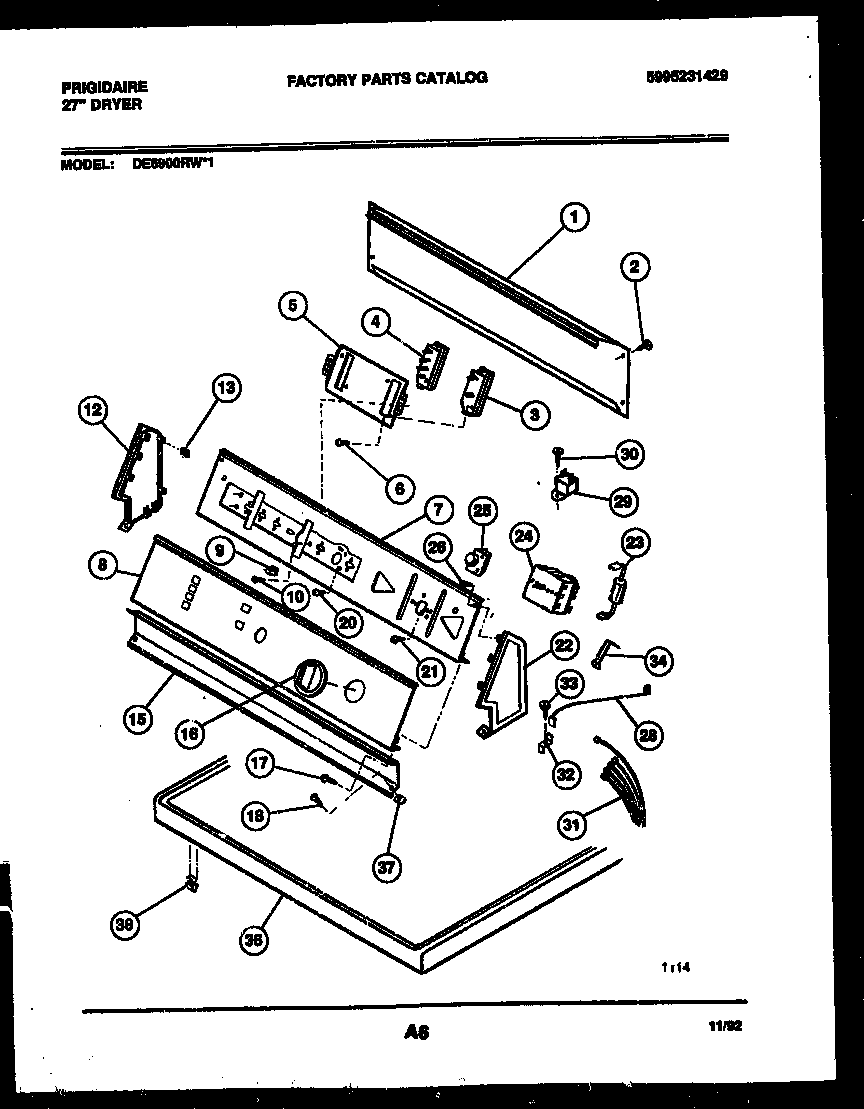

DE6900RW1 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	BACK COVER
2	SCREW
3	WCI 5308010818
4	WCI 5303201323
5	WCI 3201324
7	WCI 131013300
8	WCI 131098800
9	PUSHBUTTON SWITCH (6)
10	SCREW (3)
12	WCI 5303270198
13	CLIP (8)
15	TRIMPLATE LOWER
16	TIMER KNOB
17	WCI 08010782
18	WCI 5303279343
20	WCI 08001544
21	218359202 Frigidaire Refrigerator Screw
22	WCI 5303270200
23	RESISTOR
24	WCI 131062600
25	WCI 5303210198
26	SCREW (2)
28	WCI 3201385
29	WCI 5308004087
30	WCI 08010804
31	WCI 131098500
31A	5303303590 Frigidaire Dryer 4.0" Cable Tie
32	WCI 5379171000
33	131243800 Frigidaire Screw
34	WCI 08014349
36	PANEL-TOP-WHITE
37	CLIP
38	3205821 Frigidaire Clip
