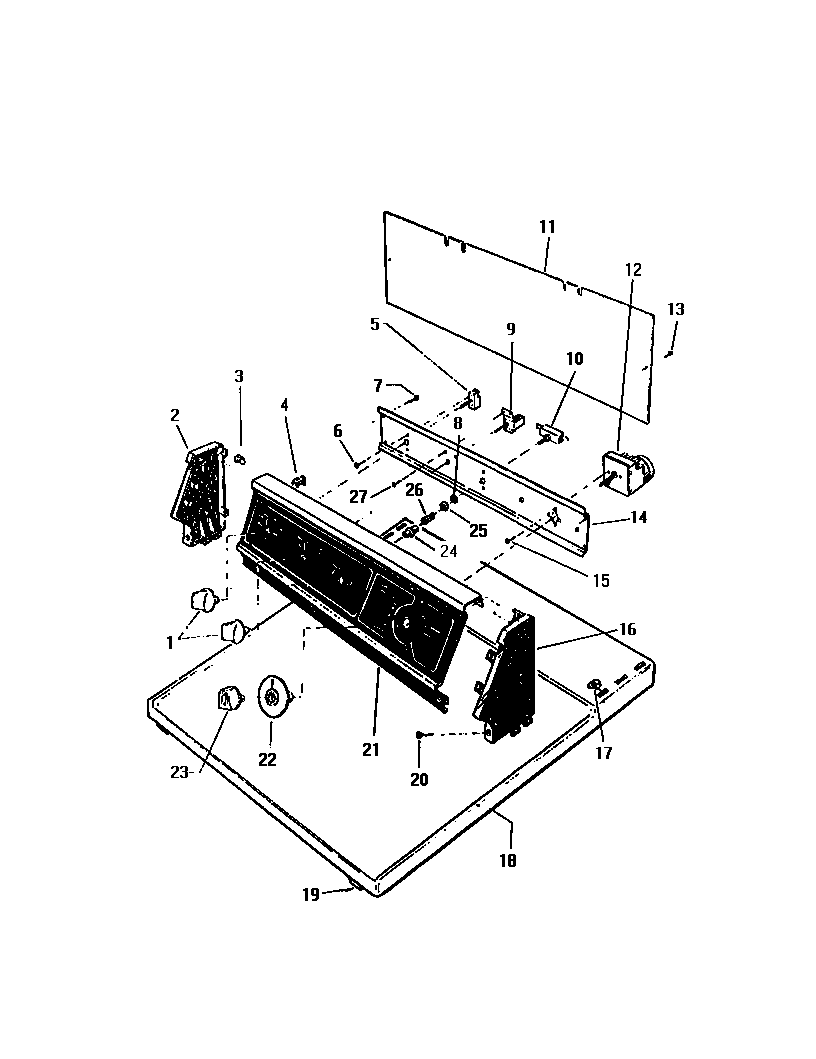

DE700EDD4 02 – CONSOLE, CONTROLS – Aparts

DE700EDD4 02 – CONSOLE, CONTROLS

Products

Position	Product
2	WCI Q616731
3	SPEEDNUT (8)
4	WCI Q504801
5	SWITCH, TEMPERATURE
6	SCREW
8	WCI Q409004
9	WCI Q152914
10	START SWITCH
11	WCI Q616741
12	WCI Q630115
13	SCREW (4)
14	WCI Q616711
15	SCREW (4)
16	WCI Q616732
17	WCI Q503065
18	WCI Q621246
19	SPRING CATCH
20	WCI Q504533
21	WCI Q616861
22	WCI Q617641
23	KNOB TIMER
24	WCI Q621231
25	WCI Q501450
26	WCI Q66793
27	SCREW (4)
