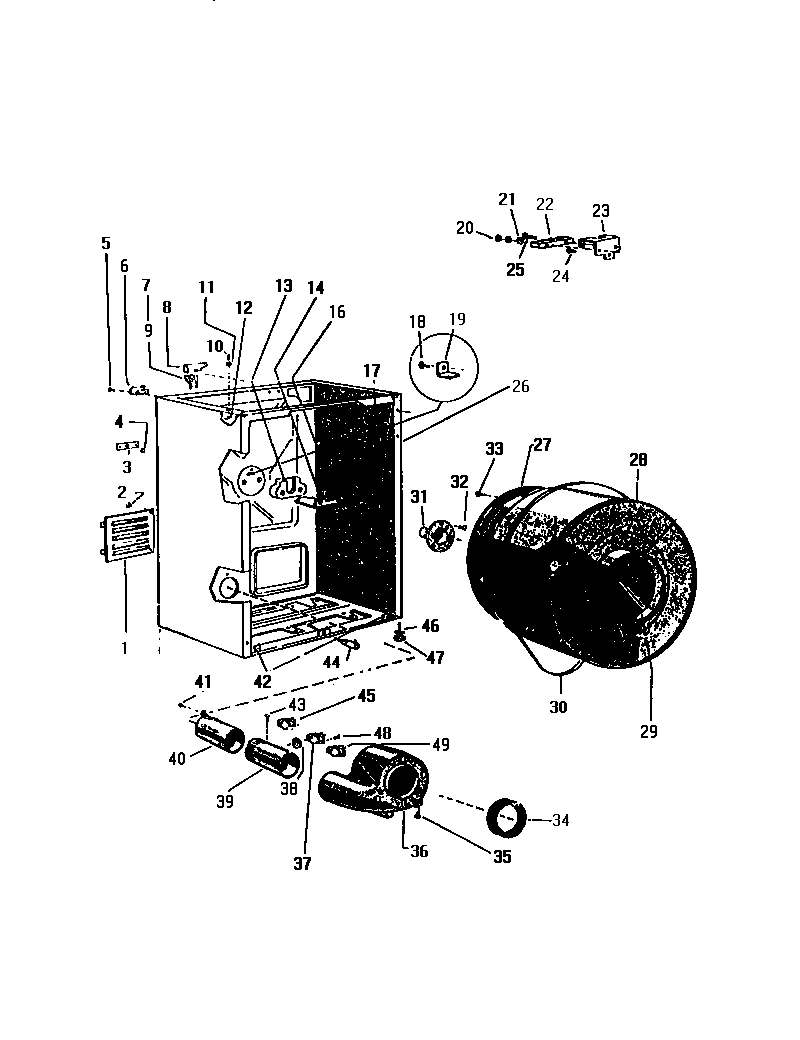

DE700EDF2 04 – CABINET, DRUM, HEATER HOUSING

Products

Position	Product
*70962	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
1	WCI Q94811
3	SPEED NUT STRIP
4	BALL
6	WCI Q155561
7	WCI Q435098
8	WCI Q133281
9	WCI Q133283
10	WCI Q502482
11	WCI Q440067
12	WCI 1466314
13	BEARING
14	BRACKET
16	SCREW
18	WCI Q505564
19	BRACKET
20	WCI Q401002
21	WCI Q440082
22	TERMINAL BLOCK
23	WCI Q133288
24	WCI Q409702
25	WCI Q403005
26	WCI Q604186
27	WCI Q165773
28	SPINNER, BASKET
29B	WCI Q501592
29A	WCI Q615891
29	WCI Q615892
30	WCI Q63807
31	SHAFT
32	SCREW
33	SCREW (3)
34	WCI Q19462
35	SCREW (4)
36	WCI Q171281
37	THERMOSTAT, MEDIUM HEAT
38	WCI Q606131
39	THERMOSTAT DUCT
40	WCI Q182901
42	WCI Q502956
43	SCREW (4)
44	WCI Q504281
45	THERMOSTAT, LOW HEAT
46	WCI Q196170
47	WCI Q16971
48	SCREW
49	THERMOSTAT, REGULAR HEAT
