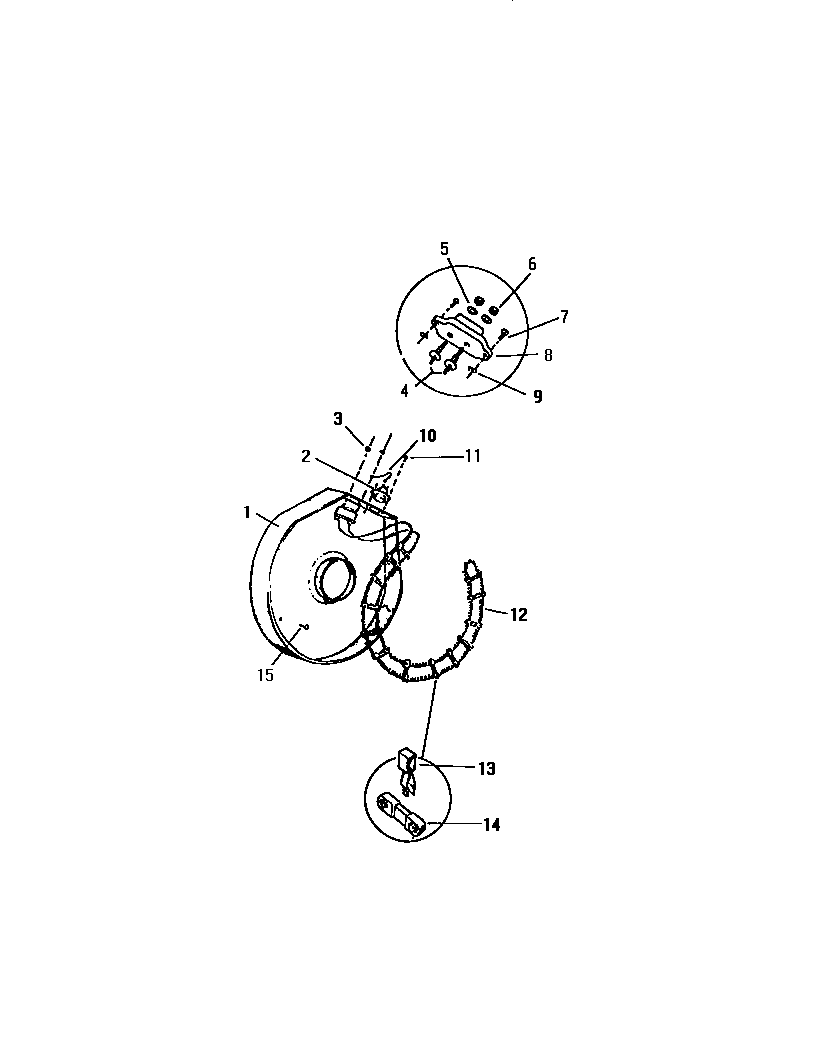

DE700EDW1 05 – COIL, HEATER HOUSING

Products

Position	Product
1	HEATER HSG
2	THERMOSTAT HI-LIMIT -1-2 MODELS
4	WCI Q64572
5	WCI Q440082
6	WCI Q401002
7	WCI Q402705
8	TERMINAL BLOCK 1-2 MODELS
9	WCI Q500621
10	WCI Q119762
11	SCREW (4)
12	COIL 1-2 MODELS
13	SUPPORT CLIP
14	BUSHING 14 REQ.
15	WCI Q505564
