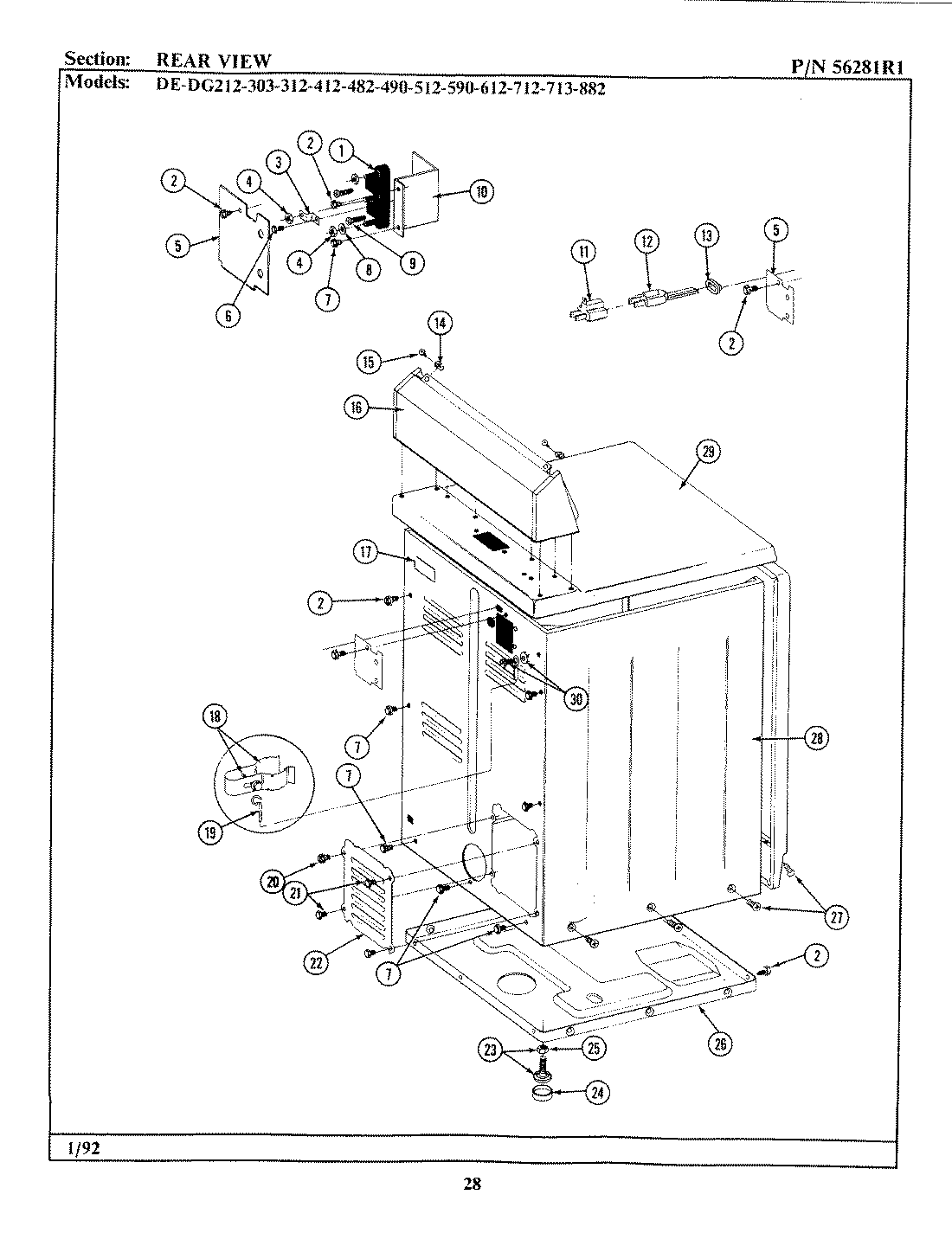

DE712 07 – REAR VIEW

DE712 07 – REAR VIEW

Written by

in

DE712 07 – REAR VIEW

Products

PositionProduct
1PART NOT USED
2MAY Y313561
3PART NOT USED
4WP112432 Whirlpool Nut Assembly
5MAY Y312905
6PART NOT USED
7MAY Y310632
8WPY311270 Whirlpool Washer TE
9SCREW, No.10-24 X 3/4 INCH—–O
10PART NOT USED
14MAY 215075
15MAY 210932
16MAY Y305193
17INSTRUCTION LABEL
18MAY 301548
19WP311155 Whirlpool Wire Assembly
20MAY Y313559
21WP90767 Whirlpool Screw
22MAY Y312951
23W10176519 Whirlpool Leveling Feet
24WPY314137 Whirlpool Rubber Foot
25WP62739 Whirlpool Nut
26MAY Y303361
27213007 Whirlpool Screw #12
28MAY 305302
29TOP COVER ASSY. (WHT)
30MAY 303846
