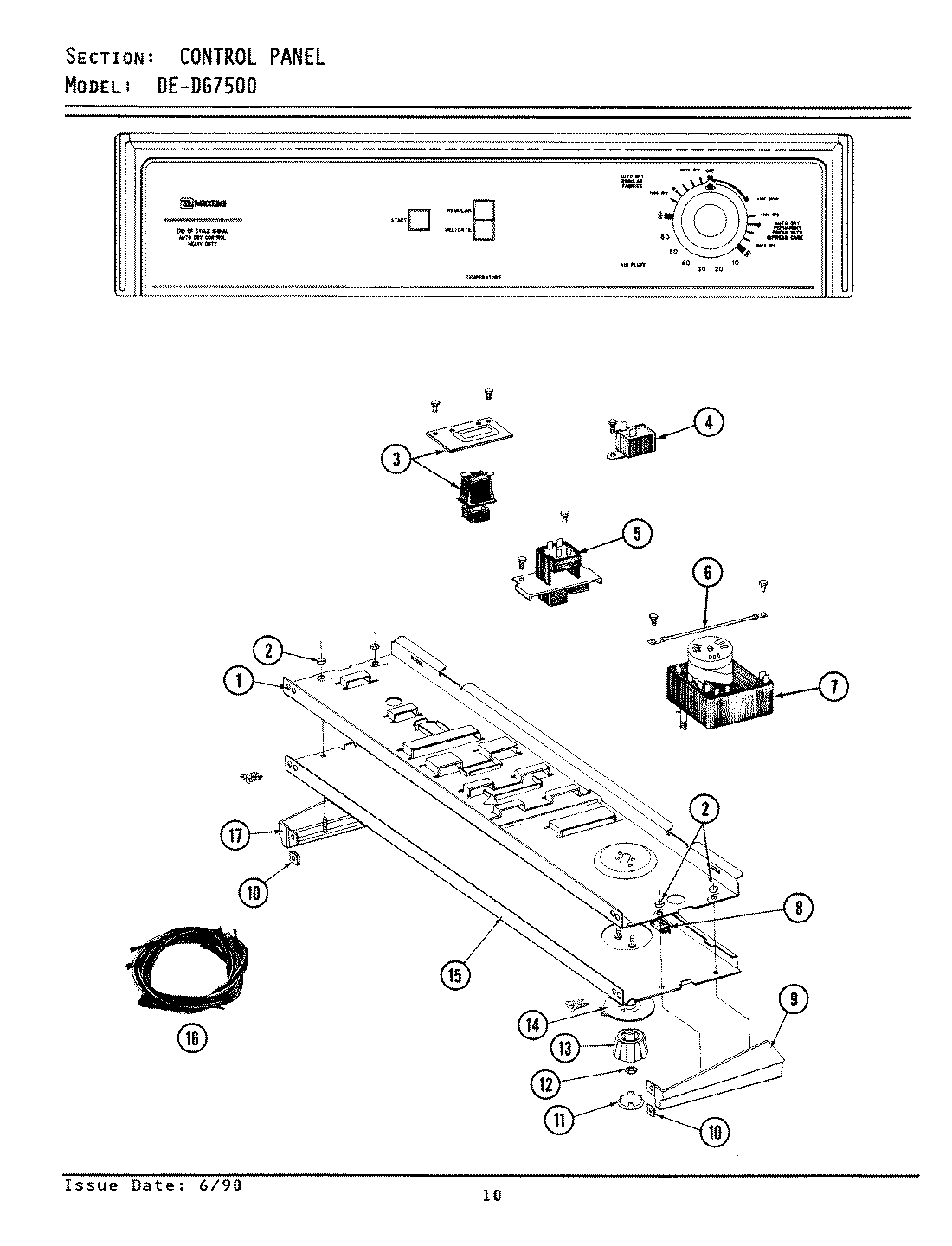

DE7500 01 – CONTROL PANEL

Products

Position	Product
1	BACK UP PLATE
2	MAY 214872
3	SWITCH PUSH TO START
4	WP694419 Whirlpool Buzzer Adjuster
5	WPW10139210 Whirlpool Screw
5	MAY 207365
6	MAY 204807
6	WP90767 Whirlpool Screw
7	WP306534 Whirlpool Timer
7	MAY 910708
8	MAY 214897
9	MAY 207216
10	MAY 214894
11	MAY 215821
12	W10155650 Whirlpool Nut
13	MAY 315041
14	MAY 315042
15	MAY 210932
15	MAY 307952
16	MAY 307251
16	MAY 307344
17	MAY 207215
