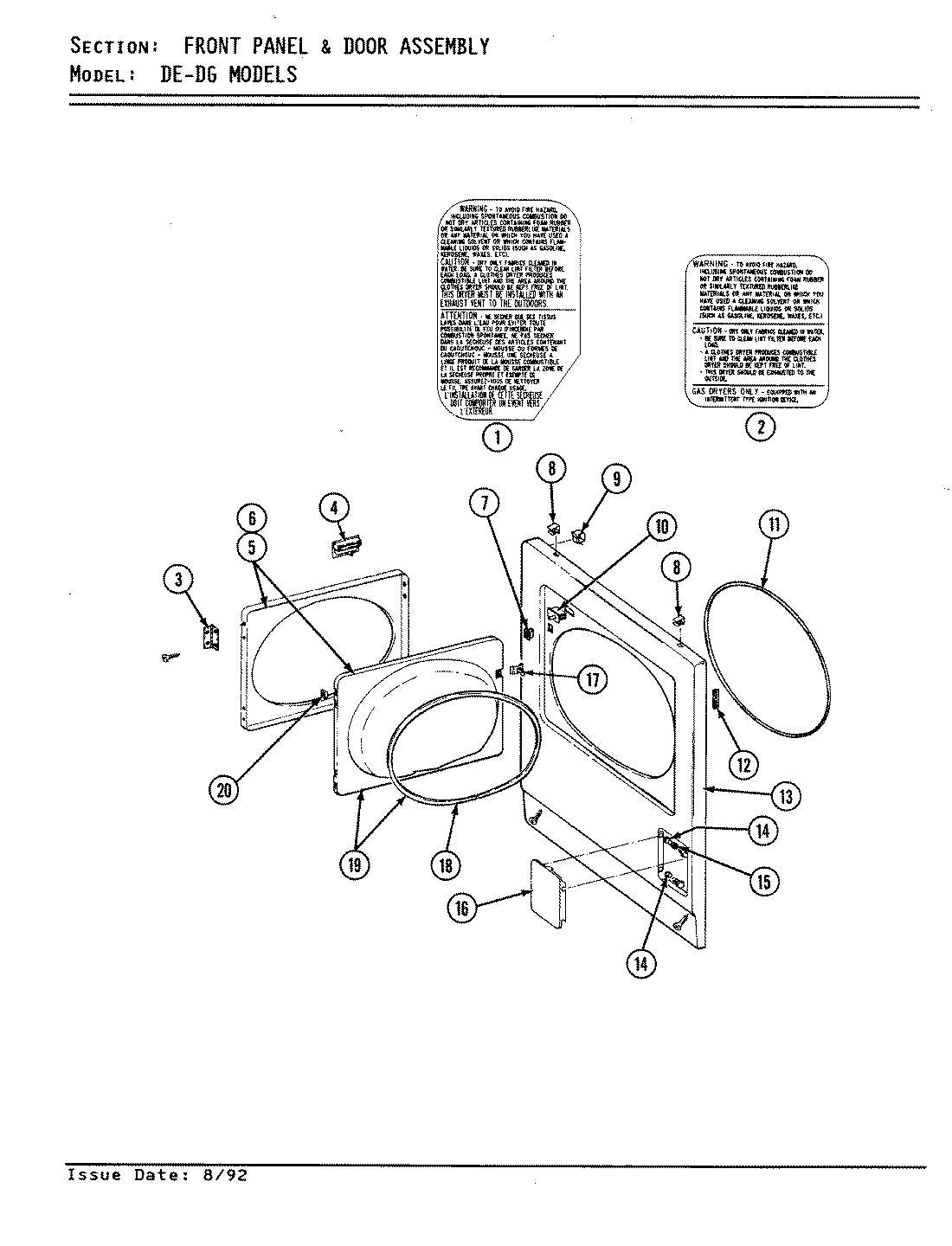

DE7500 02 – FRONT PANEL & DOOR ASSEMBLY

DE7500 02 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

DE7500 02 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
1MAY 314942
2MAY 314941
3MAY 307099
4SCREW
4MAY 314946
5MAY Y307111
6MAY 314966
7306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
8MAY 212982
9MAY Y310376
10W10169313 Whirlpool Door Switch Kit
11MAY 314937
12MAY Y313907
13PANEL, FRONT (WHT)
13SCREW & FSTNER ASSY (FT. PNL)
17MAY 314936
17MAY 314944
18MAY 314935
19MAY 307098
20CLIP, DOOR LINER
