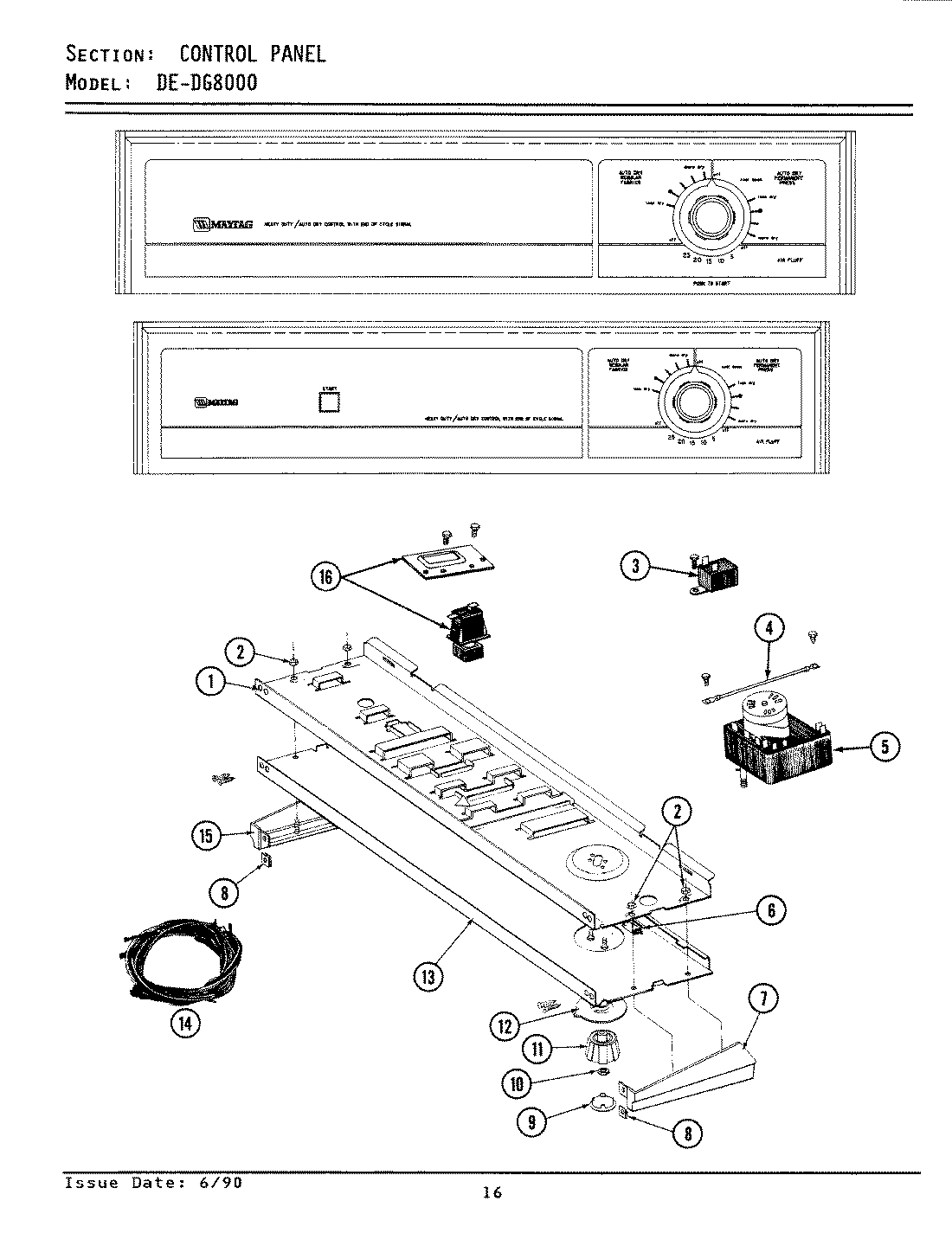

DE8000 01 – CONTROL PANEL

Products

Position	Product
1	BACK UP PLATE
2	MAY 214872
3	WP694419 Whirlpool Buzzer Adjuster
4	WP90767 Whirlpool Screw
4	MAY 204807
5	MAY 306483
5	MAY 308088
5	MAY 910708
6	MAY 214897
7	MAY 210932
7	MAY 314727
8	MAY 214894
9	WPW10133501 Whirlpool Cap
10	W10155650 Whirlpool Nut
12	MAY 314725
13	CONTROL PANEL
13	MAY 308094
14	MAY 307254
14	MAY 307261
14	MAY 308085
14	MAY Y308087
15	MAY 314726
16	SWITCH PUSH TO START
16	WPW10139210 Whirlpool Screw
