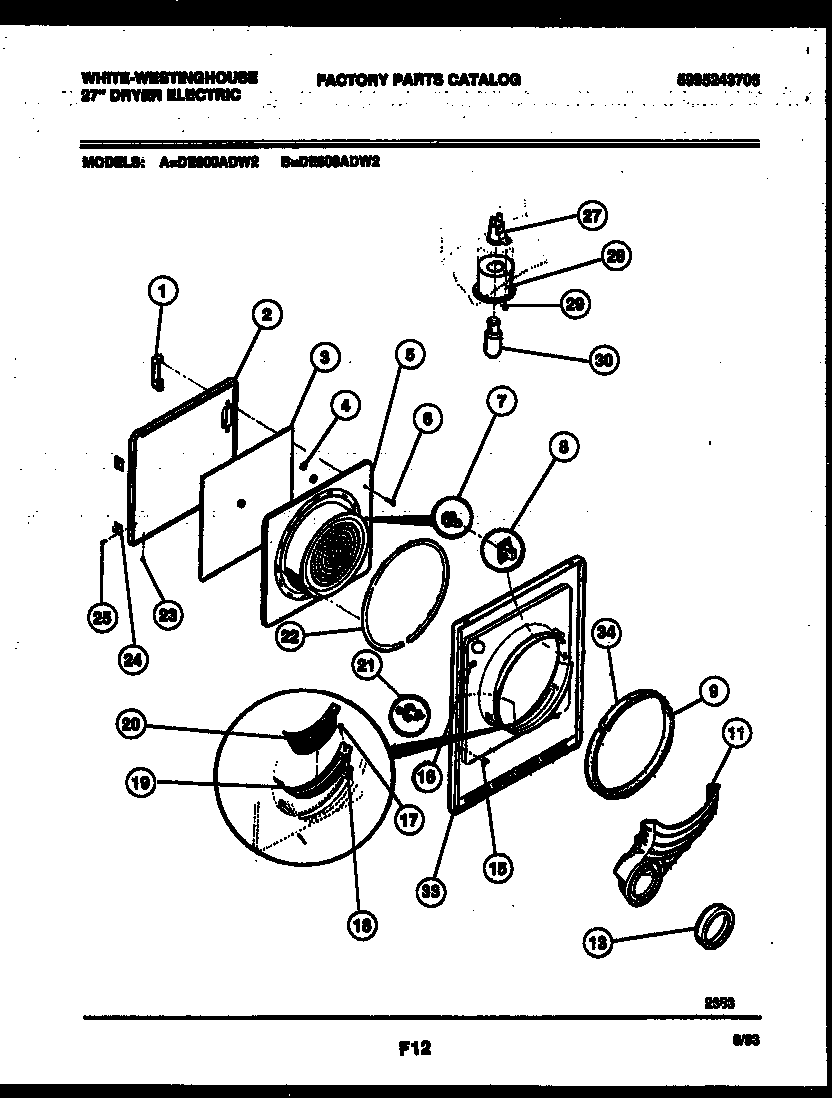

DE800ADD2 03 – DOOR PARTS

Products

Position	Product
1	WCI 5303288839
2	PANEL-O.D. ALMD
3	SHIELD, HEAT
4	WCI 3201205
5	PANEL-I.D. ALMD
6	WCI 5303281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	WCI 5303281049
11	DUCT-AIR
13	134417000 Frigidaire Seal
15	CLIP GUIDE (4)
16	CLIP
17	131420300 Frigidaire Screw
18	CLIP
20	TRAP-LINT
21	DOOR-SWITCH
22	GASKET, DOOR
24	HINGE, DOOR (2)
25	SCREW (8)
27	WCI 5308015210
28	WCI 5308015259
29	SCREW
30	WCI 5308027430
33	WCI 131003402
34	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
