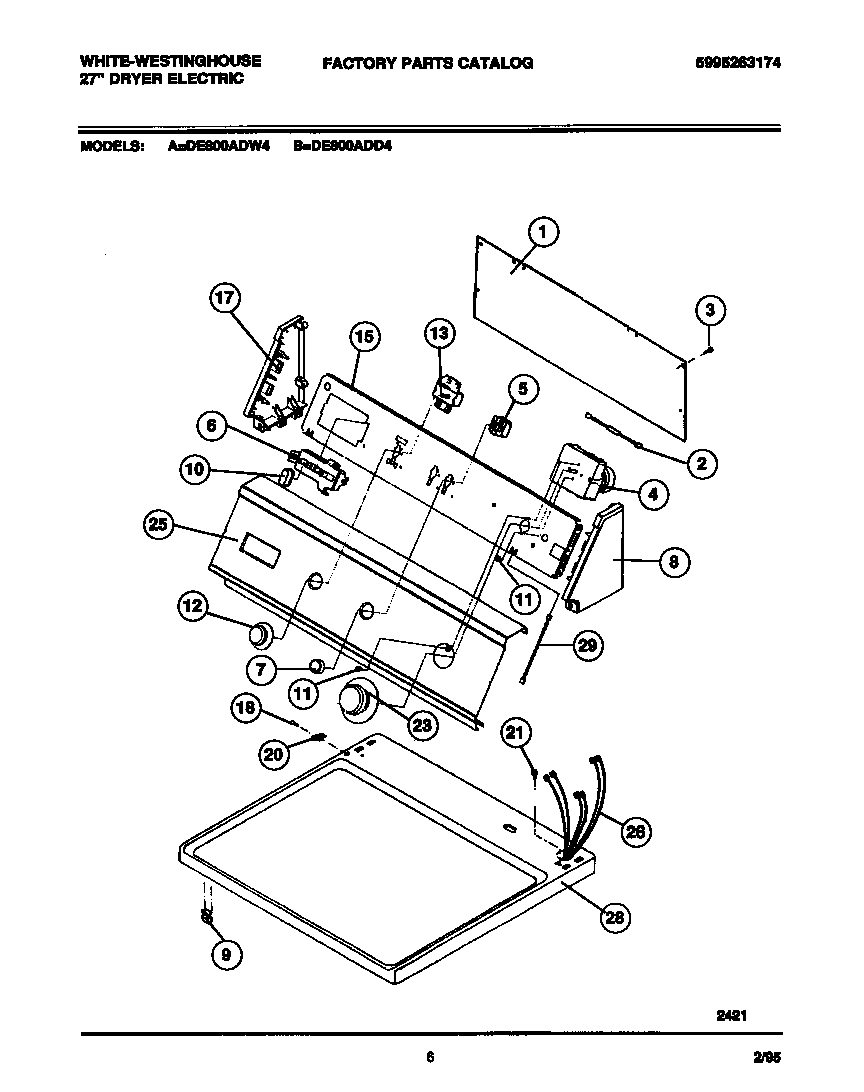

DE800ADD4 04 – CONSOLE, CONTROLS, TOP PANEL

DE800ADD4 04 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

DE800ADD4 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1COVER-BACK
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4WCI 131062600
5WCI 131048000
6WCI 131048200
7WCI 131032900
8WCI 5303291352
93205821 Frigidaire Clip
10PUSHBUTTON (4)
11218359202 Frigidaire Refrigerator Screw
12WCI 131118600
13WCI 131048300
15WCI 5303291355
17WCI 5303291344
18WCI 5303289526
20CLIP
21131243800 Frigidaire Screw
23WCI 131118900
25WCI 131125000
26WCI 131235900
28WCI 131130404
29WCI 131062202
