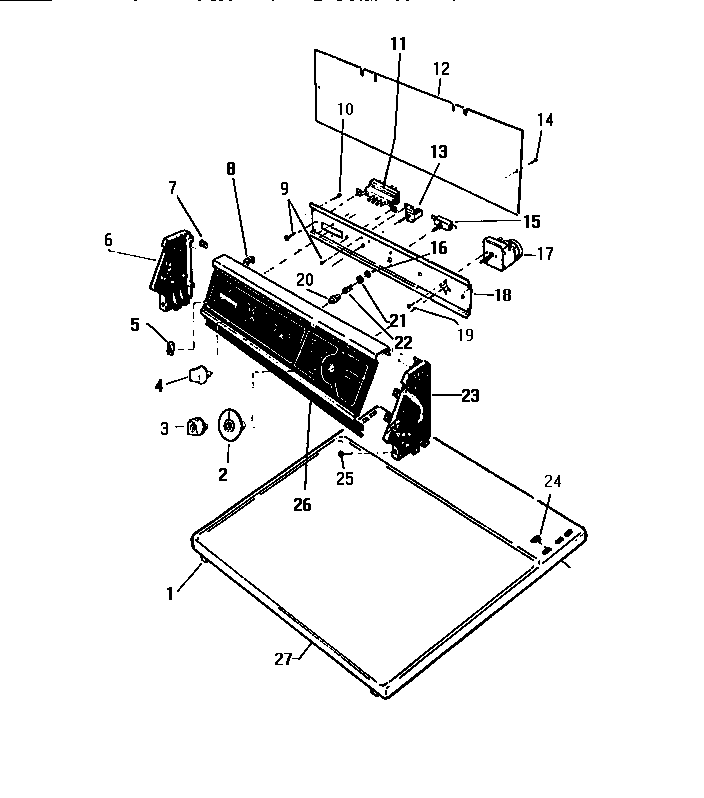

DE800EDD1 02 – CONSOLE & CONTROLS

Products

Position	Product
1	SPRING CATCH
3	KNOB TIMER
5	WCI Q148992
8	WCI Q504801
10	SCREW (4)
11	SWITCH WITH PUSHBUTTON - 1 MODELS
12	WCI Q616741
13	WCI Q152914
14	SCREW (4)
15	START SWITCH
16	WCI Q409004
17	TIMER - 1 MODELS
18	WCI Q616712
19	SCREW (4)
20	WCI Q621231
21	WCI Q501450
22	WCI Q66793
23	WCI Q616732
24	WCI Q503065
25	WCI Q504533
26	PANEL, CONTROL - 1-2 MODELS
27	WCI Q621246
