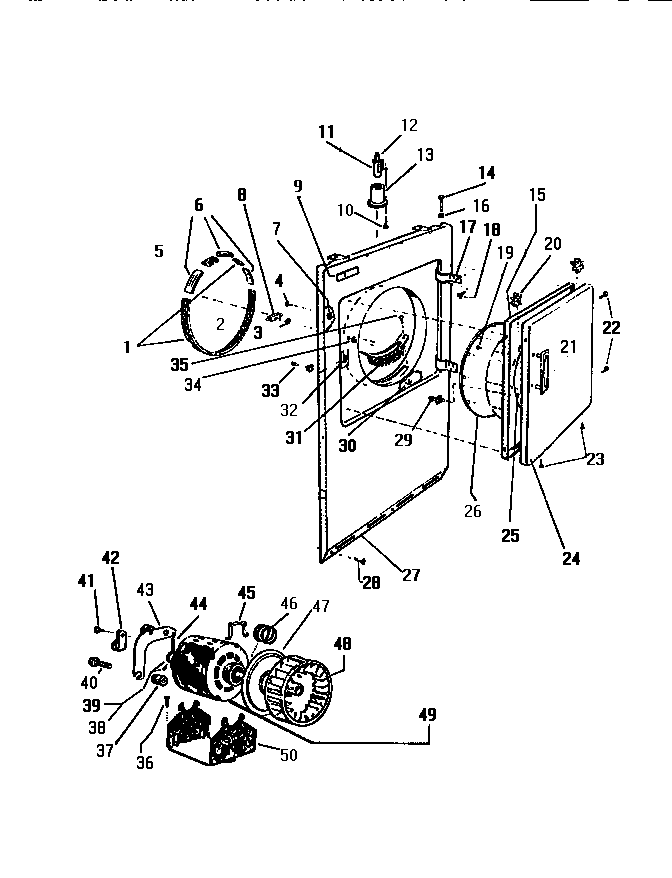

DE800EDD4 03 – FRONT PANEL, DOOR & MOTOR

Products

Position	Product
1	WCI Q142888
2	WCI Q15142
3	WCI Q409004
4	WCI Q505564
5	WCI Q15141
6	GUIDE KIT
8	WCI Q184702
9	WCI Q604442
10	SCREW (4)
11	DOUBLE CONTACT BAYONET BASE 15W, 115/125V, CLEAR (BULB T
12	WCI Q128481
13	WCI Q182671
14	WCI Q55021
15	PANEL INNER DOOR, ALMD
16	WCI Q500155
17	WCI Q94651
18	WCI Q500433
20	WCI Q631591
21	WCI Q151326
23	WCI Q411004
24	PANEL OUTER DOOR, ALMD
25	SHIELD
26	WCI Q167701
27	PANEL FRONT, ALMD
28	WCI Q501687
29	WCI Q504552
30	WCI Q500255
31	WCI Q168541
32	WCI Q504551
33A	WCI 1466314
33	WCI Q502482
34	WCI Q501450
35	WCI Q405802
36	SCREW
37	WCI Q600179
38	SCREW
39	PULLEY (SEE NOTE 1)
40	WCI Q433401
41	WCI Q414002
42	CLAMP
43	IDLER PULLEY AND BRACKET
44	SPRING
45	WCI Q62206
46	WCI Q94715
47	WCI Q94948
48	WCI Q615901
49C	MOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
49B	MOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
49A	(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
49F	START SWITCH FOR Q616391 EMER.
49E	START SWITCH FOR Q616401 GE
49	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
49D	START SWITCH FOR Q615921 WW
50	WCI Q94874
