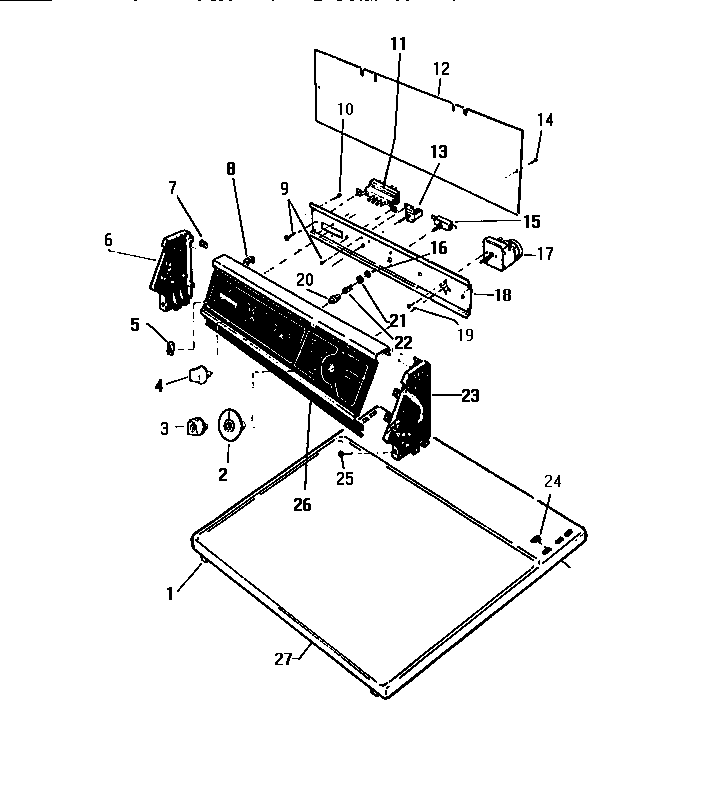

DE800EDF2 02 – CONSOLE & CONTROLS

DE800EDF2 02 – CONSOLE & CONTROLS

Written by

in

DE800EDF2 02 – CONSOLE & CONTROLS

Products

Position	Product
1	SPRING CATCH
2	WCI Q617641
4	KNOB TIMER
5	WCI Q148992
6	WCI Q616731
7	SPEEDNUT (8)
8	WCI Q504801
10	SCREW (4)
11	WCI Q614730
12	WCI Q616741
13	WCI Q152914
14	SCREW (4)
15	START SWITCH
16	WCI Q409004
17	WCI Q618541
18	WCI Q616712
19	SCREW (4)
20	WCI Q621231
21	WCI Q501450
22	WCI Q66793
23	WCI Q616732
24	WCI Q503065
25	WCI Q504533
26	PANEL, CONTROL – 1-2 MODELS
27	WCI Q621247
