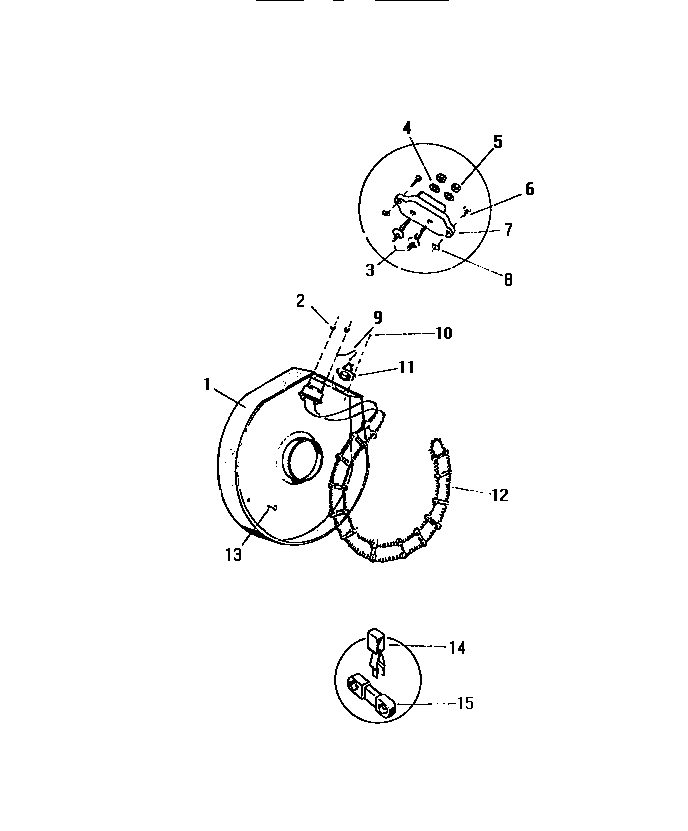

DE800EDH2 05 – HEATER HOUSING – Aparts

DE800EDH2 05 – HEATER HOUSING

Products

Position	Product
1	HEATER HSG
3	WCI Q64572
4	WCI Q440082
5	WCI Q401002
6	WCI Q402705
7	TERMINAL BLOCK 1-2 MODELS
8	WCI Q500621
9A	WIRE CONN. -2-4 MODELS
10	SCREW (4)
11	THERMOSTAT HI-LIMIT -1-2 MODELS
12	COIL 1-2 MODELS
13	WCI Q505564
14	SUPPORT CLIP
15	BUSHING 14 REQ.
