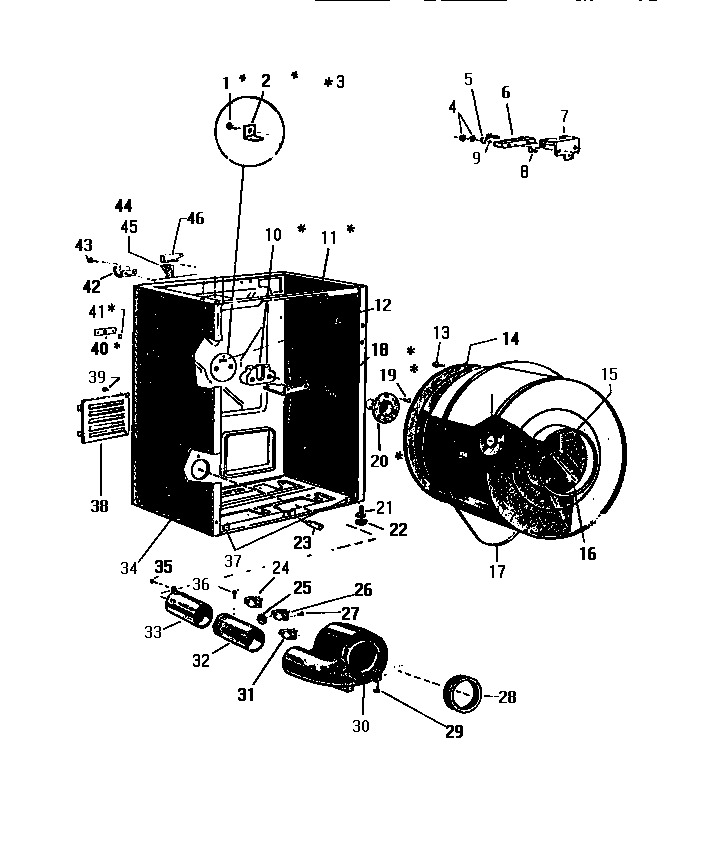

DE800EDW2 04 – CABINET & DRUM

Products

Position	Product
2	BRACKET
3	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
4	WCI Q401002
5	WCI Q440082
6	TERMINAL BLOCK
7	WCI Q133288
9	WCI Q403006
10	BEARING
11	BRACKET
12	WCI Q505564
13	SCREW (3)
14	WCI Q165773
15	SPINNER, BASKET
16B	WCI Q615892
16A	WCI Q615891
17	WCI Q63807
18	SCREW
19	SCREW
20	SHAFT
21	WCI Q198170
22	WCI Q16971
23	WCI Q504281
24	THERMOSTAT, LOW HEAT
25	WCI Q606131
26	THERMOSTAT, MEDIUM HEAT
27	SCREW
28	WCI Q19462
29	SCREW (4)
30	WCI Q171281
31	THERMOSTAT, REGULAR HEAT
32	THERMOSTAT DUCT
33	WCI Q182901
34D	BODY, WHITE (AVAILABLE DURING PRODUCTION ONLY)
37	WCI Q502956
38	WCI Q94811
39	SCREW (4)
40	SPEED NUT STRIP
41	BALL
42	WCI Q155581
43	WCI Q409702
44	WCI Q133283
45	WCI Q435098
46	WCI Q133281
