DE800EDW5 05 – HEATER HOUSING

DE800EDW5 05 – HEATER HOUSING

Written by

in

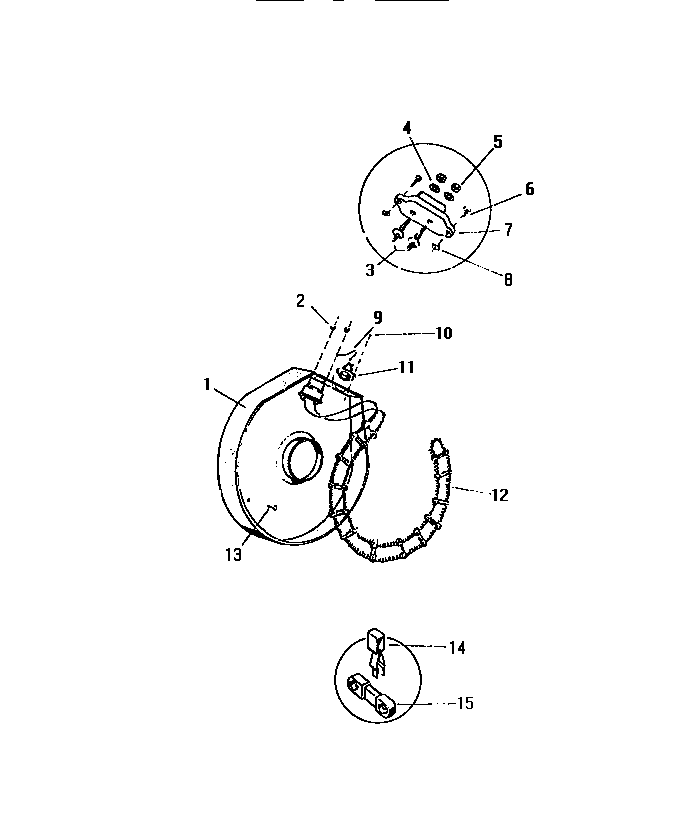

DE800EDW5 05 – HEATER HOUSING

Products

PositionProduct
1HEATER HSG
3WCI Q64572
4WCI Q440082
5WCI Q401002
6WCI Q402705
7TERMINAL BLOCK 1-2 MODELS
7TERMINAL BLOCK -4 MODELS
8WCI Q500621
9WIRE CONN. -2-4 MODELS
9WCI Q119762
10SCREW (4)
11THERMOSTAT HI-LIMIT -4 MODELS
11THERMOSTAT HI-LIMIT -1-2 MODELS
12COIL -4 MODELS
12COIL 1-2 MODELS
13WCI Q505564
14SUPPORT CLIP
15BUSHING 14 REQ.
