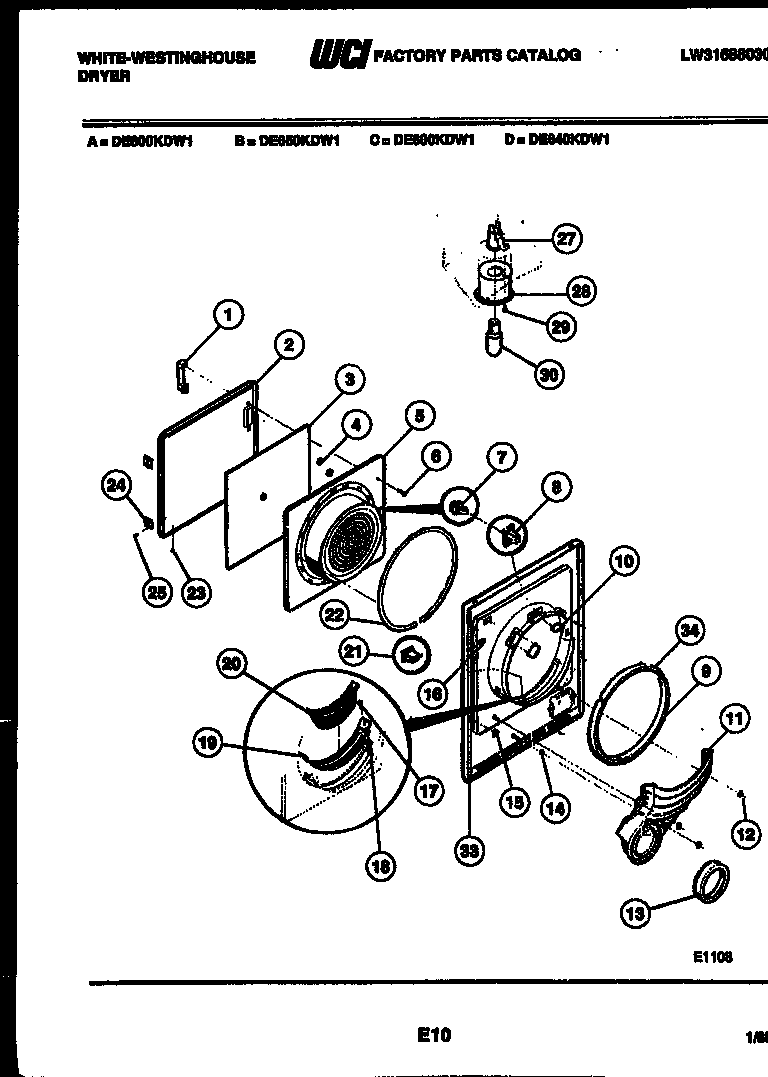

DE800KDD1 03 – DOOR PARTS

Products

Position	Product
1	WCI 3281053
2	PANEL-O.D. ALMD
3	HEAT SHIELD
4	WCI 3201205
4	SPACER (2)
5	PANEL-I.D. ALMD
6	WCI 3281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	SEAL
10	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
11	WCI 08015173
12	WCI 3281089
13	134417000 Frigidaire Seal
14	5300809968 Frigidaire Dishwasher P-1 Washer
15	CLIP-GUIDE (4)
16	CLIP (4)
17	131420300 Frigidaire Screw
18	CLIP (2)
19	WCI 3281060
20	TRAP-LINT
21	WCI 3281044
22	WCI 3201210
24	DOOR HINGE (2)
25	SCREW (8)
33	WCI 3201297
34	WCI 3201264
