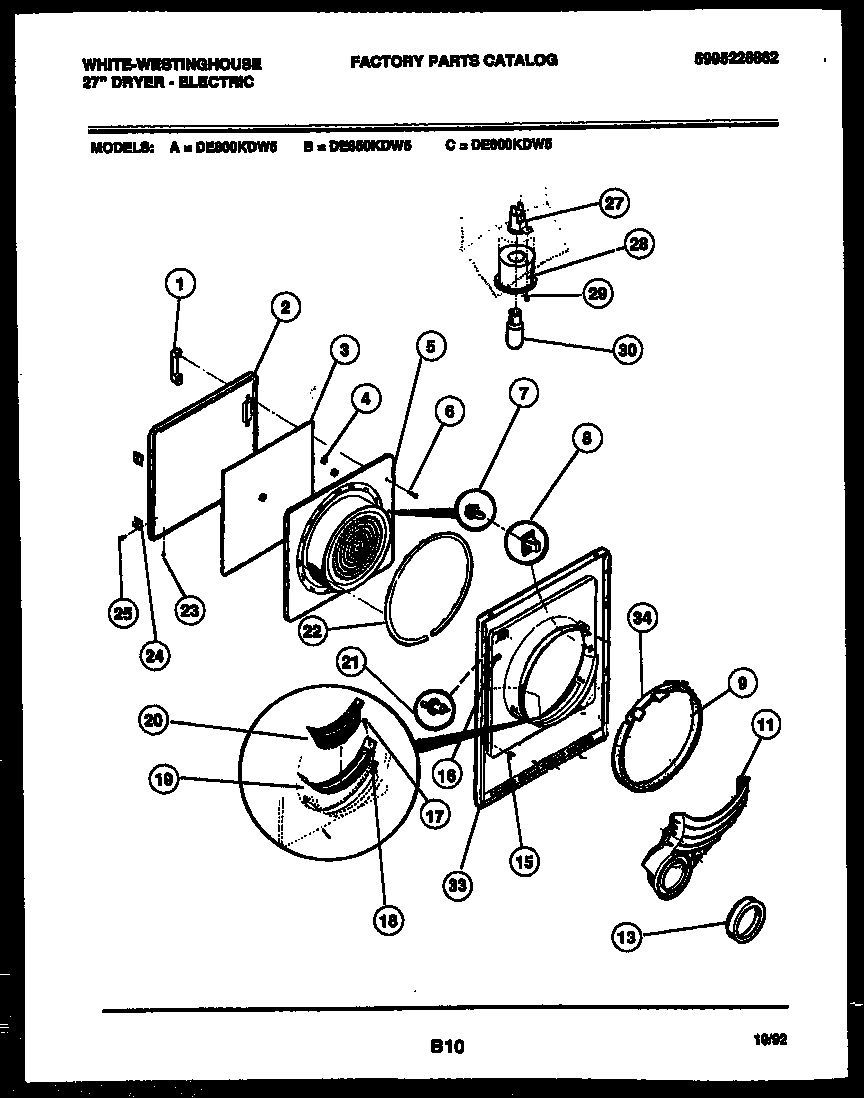

DE800KDH5 03 – DOOR PARTS

Products

Position	Product
1	WCI 3281053
2	DOOR-OUTER-WHEAT
3	HEAT SHIELD
4	WCI 3201205
4	SPACER (2)
5	DOOR-INNER-WHEAT
6	WCI 3281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	SEAL
11	WCI 131002500
13	134417000 Frigidaire Seal
15	CLIP-GUIDE (4)
16	CLIP (4)
17	131420300 Frigidaire Screw
18	CLIP (2)
19	WCI 3281060
20	TRAP-LINT
21	DOOR-SWITCH
22	WCI 3201210
24	DOOR HINGE (2)
25	SCREW (8)
27	RECEPTACLE
28	LIGHT HOLDER
29	WCI 08001860
30	LAMP
33	WCI 131003401
34	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
