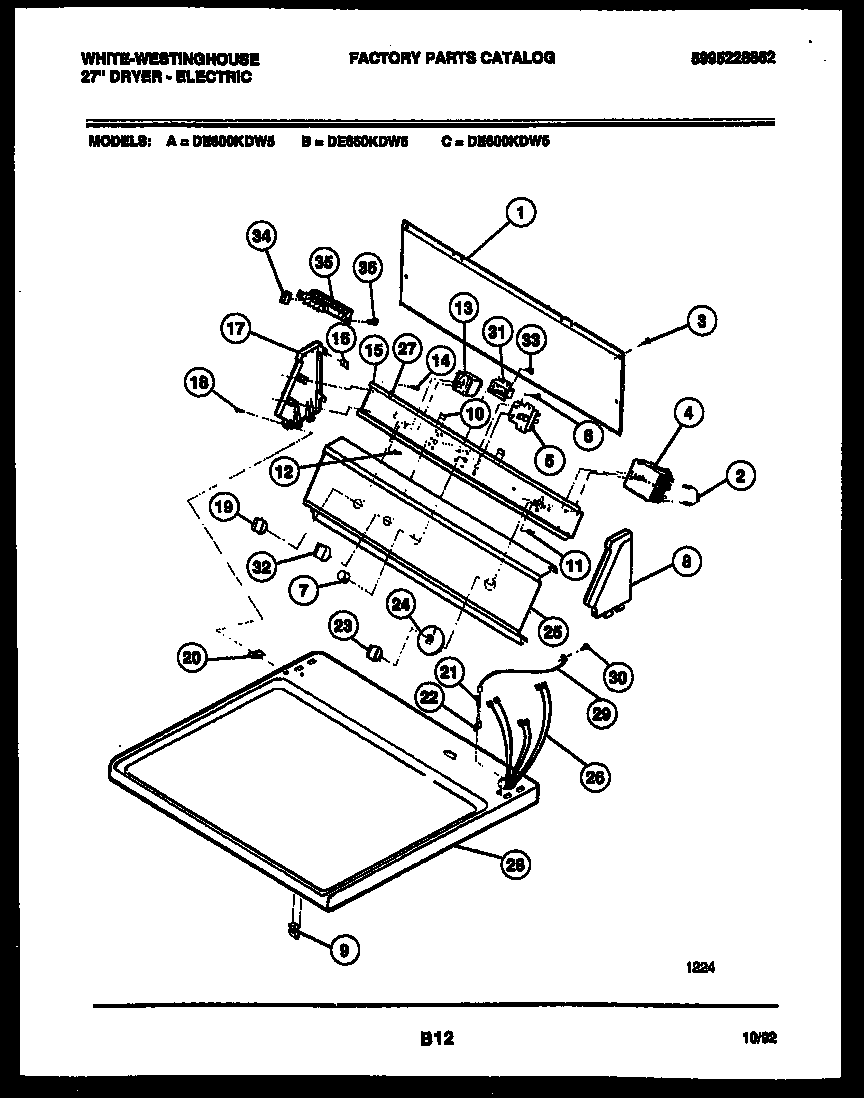

DE800KDW5 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	BACK COVER
2	RESISTOR
3	SCREW
4	WCI 5303284106
5	SWITCH – START
6	WCI 08001544
7	WCI 3201221
8	WCI 3205840
9	3205821 Frigidaire Clip
10	PAD (2)
11	218359202 Frigidaire Refrigerator Screw
12	WCI 3281101
14	SCREW (2)
15	WCI 5303210107
16	CLIP (8)
17	WCI 3205842
18	SCREW (2)
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI 5379171000
23	KNOB-TIMER
24	WCI 08015434
25	WCI 3206028
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
26	WCI 131005000
27	WCI 3281200
28	PANEL-TOP-WHITE
29	WCI 3201308
30	SCREW (2)
31	WCI 5300152914
32	WCI 5300633722
34	WCI Q000148996
35	SWITCH-P.B.
36	SCREW (2)
