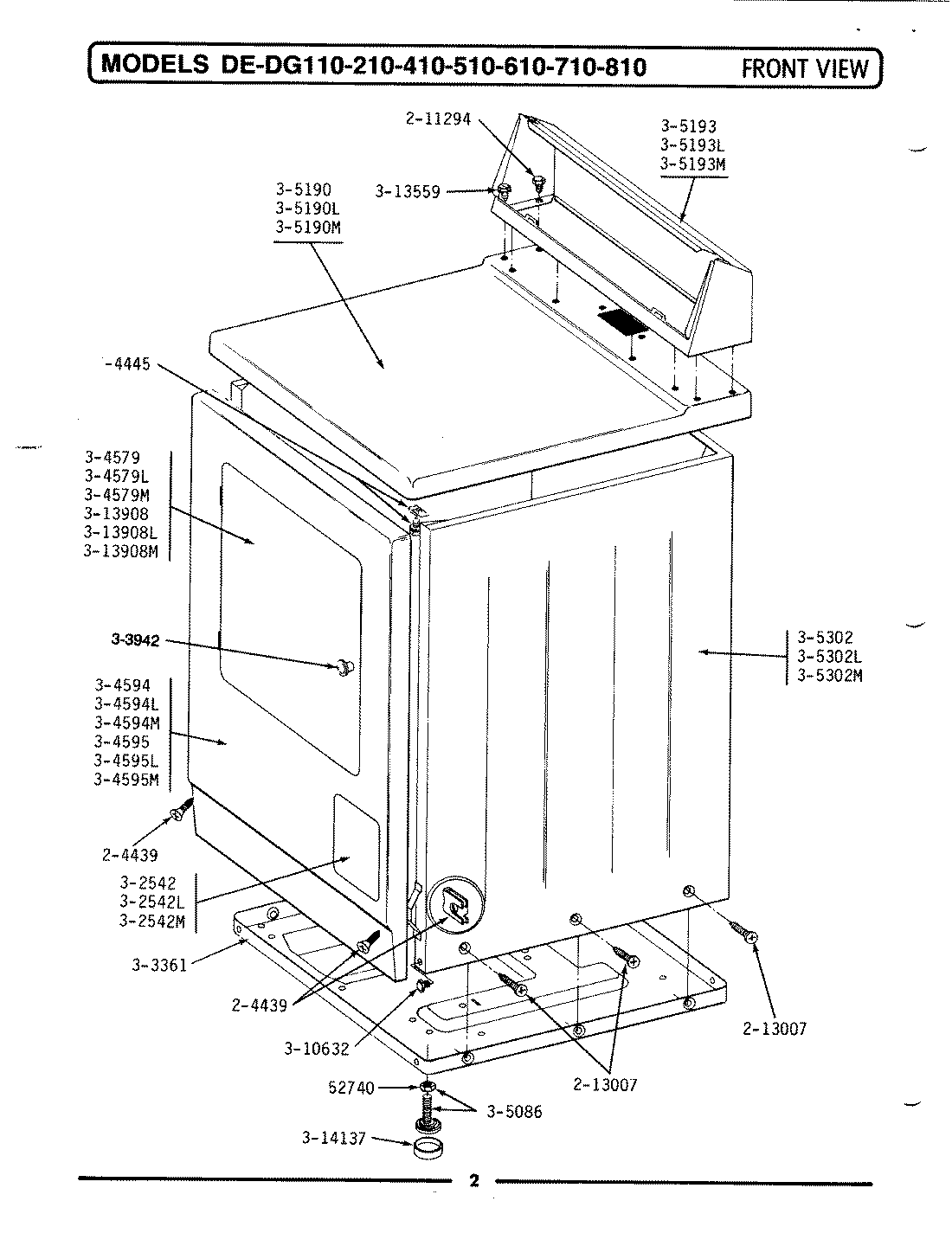

DE810 03 – FRONT VIEW

DE810 03 – FRONT VIEW

Written by

in

DE810 03 – FRONT VIEW

Products

PositionProduct
1WP62739 Whirlpool Nut
2SCREW & FSTNER ASSY (FT. PNL)
3MAY 204445
4WP90767 Whirlpool Screw
5213007 Whirlpool Screw #12
6MAY 302542
7MAY 302542L
8MAY 302542M
9MAY Y303361
10MAY Y304579
13MAY 304594
14MAY 304594L
15MAY 304594M
16MAY 304595
19W10176519 Whirlpool Leveling Feet
20MAY Y305190
23MAY Y305193
26MAY 305302
29MAY 303942
30MAY Y310632
31MAY Y313559
32MAY Y313908
35WPY314137 Whirlpool Rubber Foot
