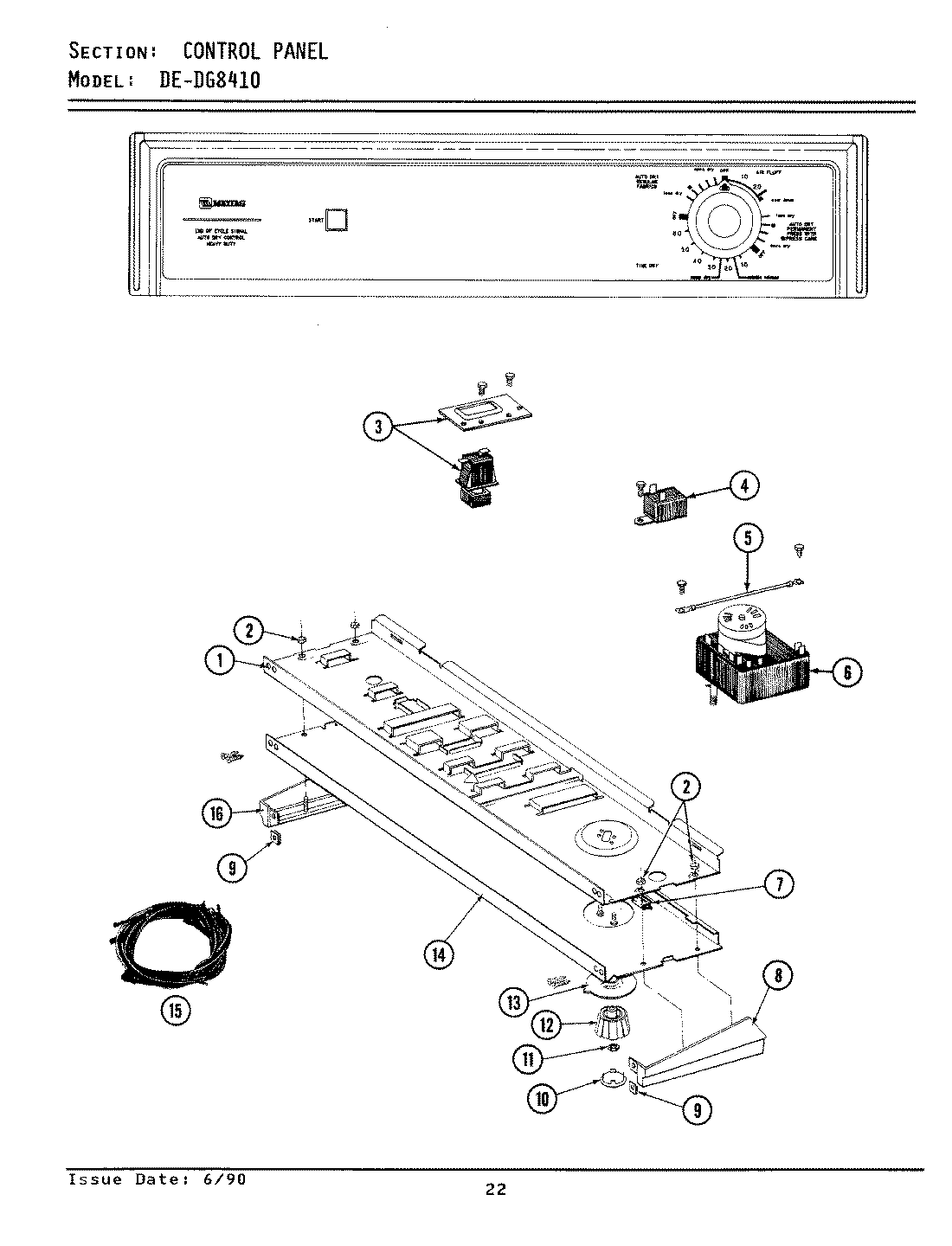

DE8410 01 – CONTROL PANEL

Products

PositionProduct
1BACK UP PLATE
2MAY 214872
3SWITCH PUSH TO START
4WPW10139210 Whirlpool Screw
4WP694419 Whirlpool Buzzer Adjuster
5WP90767 Whirlpool Screw
5MAY 204807
6MAY 910708
6WP306040 Whirlpool Timer Assembly
7MAY 214897
8MAY 207216
9MAY 214894
10MAY 215821
11W10155650 Whirlpool Nut
12MAY 315041
13MAY 315042
14MAY 210932
14MAY 307951
15MAY 307945
15MAY 307946
16MAY 207215
