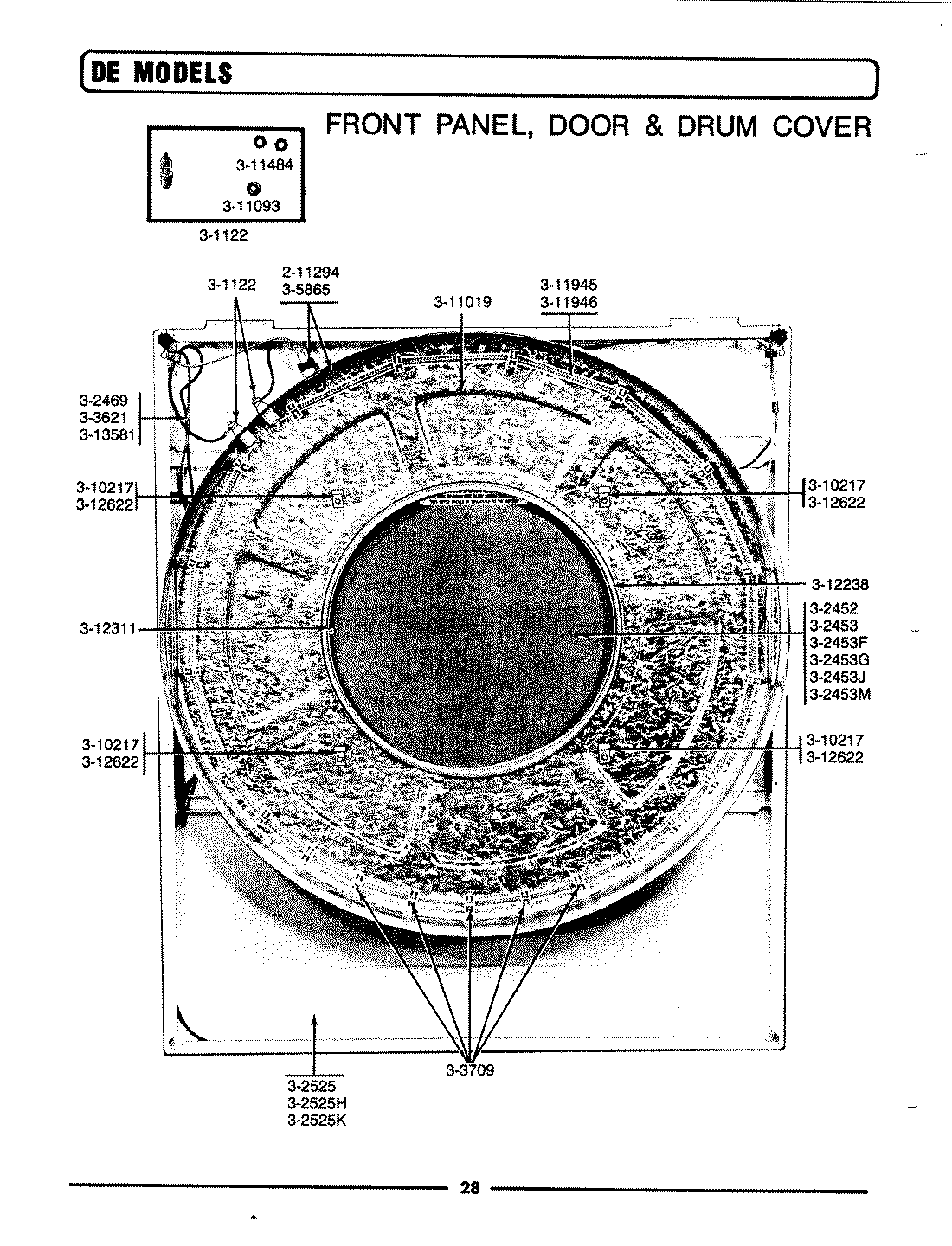

DE90 04 – FRONT PANEL, DOOR & DRUM COVER

Products

Position	Product
1	WP90767 Whirlpool Screw
2	Y304596 Whirlpool Terminal Insulator Assembly
3	DOOR LINER
4	MAY 302453
5	MAY 302453F
6	MAY 302453G
7	MAY 302453J
8	MAY 302453M
9	HARNESS FOR SHROUD
10	MAY 302525
11	MAY 302525H
12	MAY 302525K
14	MAY 303709
15	HIGH LIMIT THERMOSTAT
16	MAY 310217
17	DRUM COVER
18	WP311093 Whirlpool Washer 7
19	WP112432 Whirlpool Nut Assembly
20	MAY Y311945
21	MAY Y311946
22	MAY 312238
23	MAY 312311
24	MAY 312622
25	SLEEVE FOR DOOR WIRES
