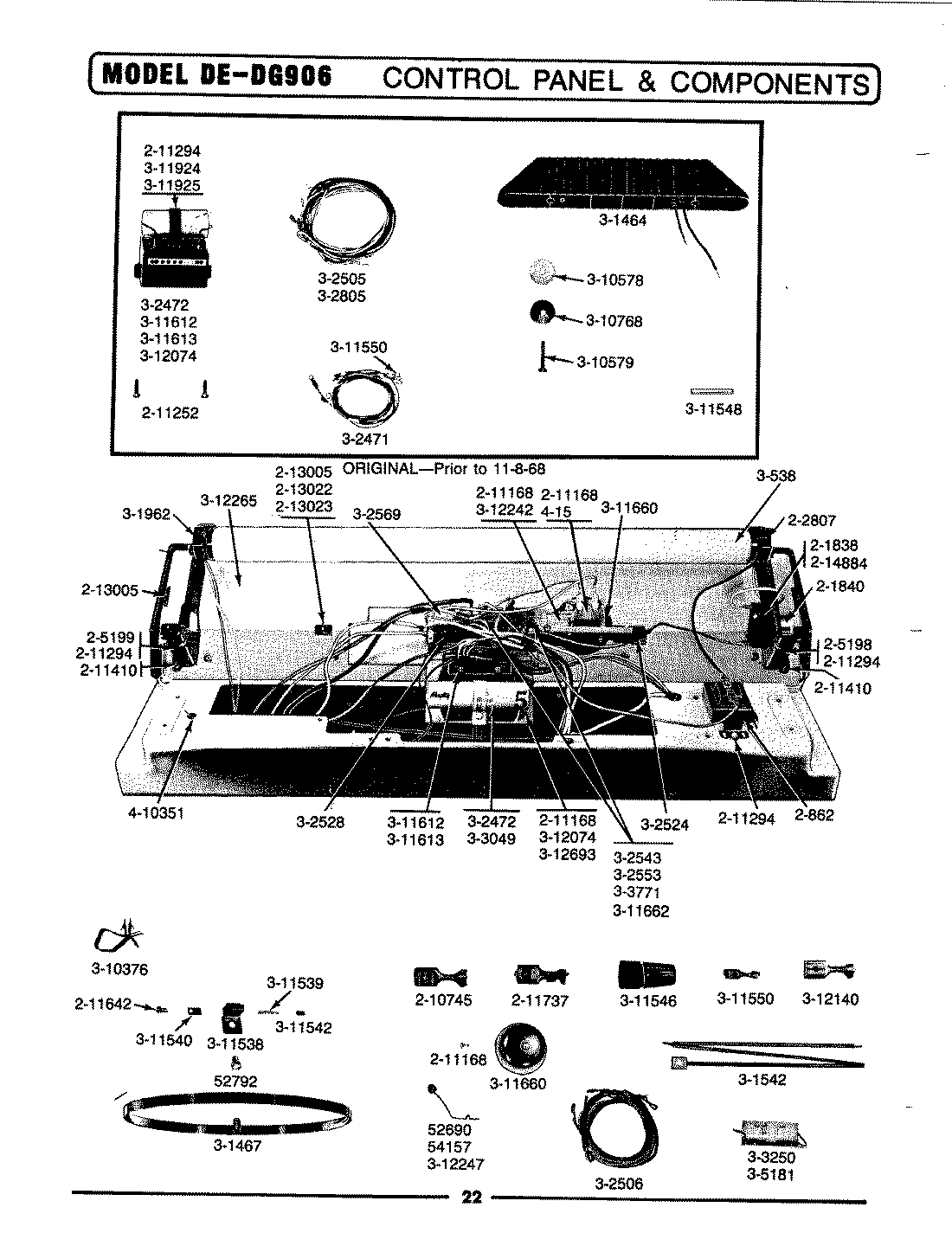

DE906 03 – CONTROL PANEL & COMPONENTS

Products

Position	Product
1	MAY 052690
2	MAY 052792
3	MAY 054157
4	MAY 200862
5	MAY 201838
6	MAY 201840
7	MAY 202807
8	MAY 205198
9	MAY 205199
10	MAY 210745
11	WPW10139210 Whirlpool Screw
12	WP489399 Whirlpool Refrigerator Screw
13	WP90767 Whirlpool Screw
14	MAY 211410
15	MAY 211642
16	MAY 211737
17	MAY 213005
18	MAY 213022
19	MAY 213023
20	MAY 214884
21	MAY Y300538
22	MAY 301464
23	MAY 301467
24	MAY 301542
25	MAY 301962
26	HARNESS FOR SHROUD
27	MAY 302470
28	MAY 302471
29	ELECTRONIC CONTROL
30	MAY 302505
31	MAY 302506
32	MAY 302524
33	MAY Y302528
34	MAY Y302543
35	MAY 302553
36	MAY 302569
37	MAY 302805
38	MAY 303040
40	BAFFLE GROUND WIRE
41	BAFFLE LEAD WIRE
42	MAY Y303045
43	MAY 303049
44	MAY 303054
45	MAY Y303250
46	MAY Y303771
47	CAPACITOR
48	MAY Y310376
49	MAY 310578
50	SCREW, No.10-24 X 11/16 INCH
51	MAY 310768
52	MAY Y311538
53	MAY Y311539
54	COVER FOR CARBON BRUSH
55	MAY Y311542
56	MAY 311546
57	MAY 311548
58	MAY Y311550
59	COVER FOR CIRCUIT BOARD
60	MAY Y311660
61	LINK – SOLENOID TO SWITCH
62	MAY 311924
63	CLAMP FOR CAPACITOR
64	MAY 312074
65	MAY Y312140
66	MAY 312242
67	MAY Y312247
68	GLASS FOR CONTROL PANEL
69	MAY 312693
70	MAY 400015
71	MAY 410351
